Product Overview
The Full Vision Shop Security Folding Door is engineered for modern commercial environments, including shopping malls and retail centers. Its innovative design features a minimalist aluminum frame compared to traditional folding doors, maximizing visibility and enhancing the customer experience. With versatile panel width options and robust security features, it combines aesthetics with functionality for high-traffic applications.

Applications
Ideal for:
• Supermarkets & Shopping Malls
• Jewelry Stores
• Coffee Shops
• Club Bars
• Brand Chain Stores
• Car Wash Facilities

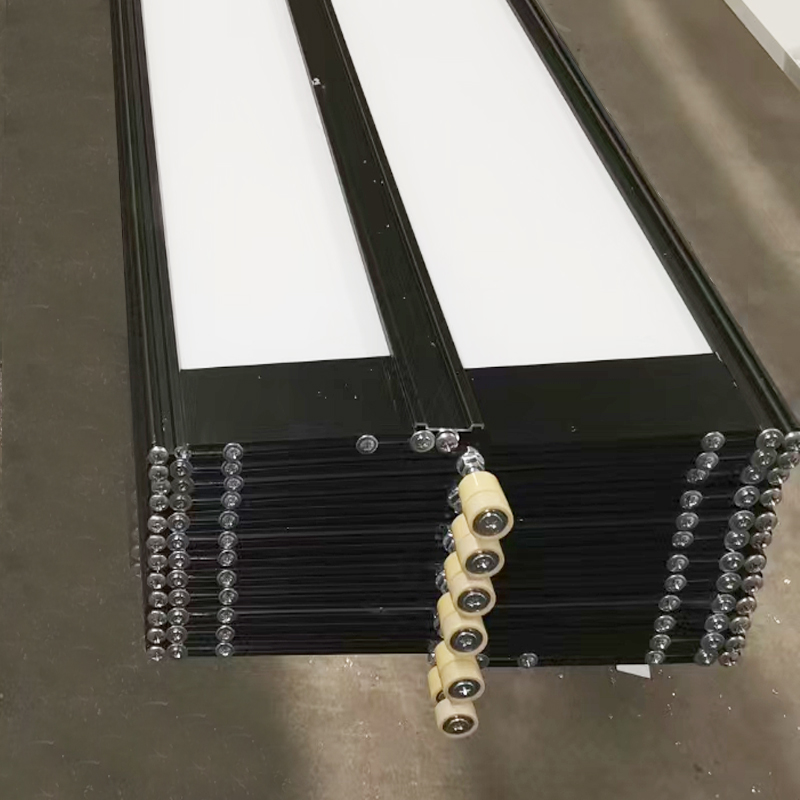

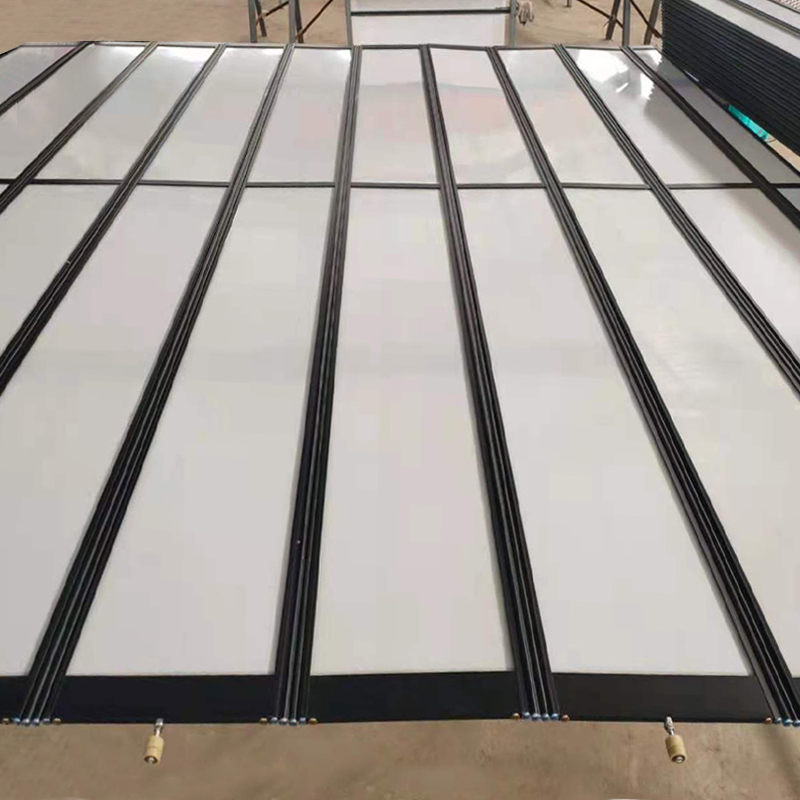

Panel Options
► Single Panel Width: 100mm, 130mm, 150mm, 180mm, 200mm, 230mm, 250mm, 280mm, 300mm
► Polycarbonate Panel: 1.5–2.0mm thickness, aluminum-framed for burglary resistance.
► Perforated Aluminum: 1.5–2.0mm with round or hexagonal holes.
► Grill Panel: 10mm aluminum rods with 80% visibility and enhanced security.
► Operation: Manual or motorized

Track System
► 25mm×35mm Aluminum Track: For straight openings; can be pre-bent for curved configurations.
► 25mm×30mm Aluminum Track: Flexible for curved openings; also suitable for straight installations.

Maximum Dimensions
► Width: Up to 35 meters
► Height:
 - Manual Operation: 4.5 meters
 - Motorized Operation: 6.0 meters.

Locking Mechanism
► Each door includes a dual-sided lock set with two keys.
► Ground bolts and dust covers provided (1 set per meter of width).

Finishes & Customization
► Standard Colors: Natural aluminum, white, black (powder-coated or anodized).
► Custom Colors: Available upon providing color samples.

Stacking Pocket
► Requires approximately 8% of total door width. Custom calculations provided based on project specifications.

Motor Specifications
► Voltage/Frequency: Single-phase 220V/50Hz; three-phase 380V/50Hz; 110V/60Hz also available.
► Remote Controls: 2+ units included.
► Lifting Capacity: 300KG to 2000KG options.
► Optional Features: Backup battery, alarm system, stopping device, smartphone control.

Warranty & Shipping
► Warranty: 5 years on full vision doors, including panel replacement for transit damage.
► Packaging: Plywood boxes for LCL shipments; foam and cartons for FCL.
