Product Description: ClearView Polycarbonate Folding Sliding Door

Overview

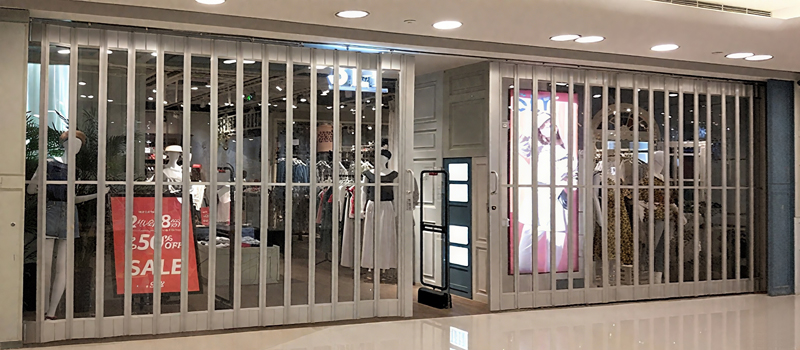

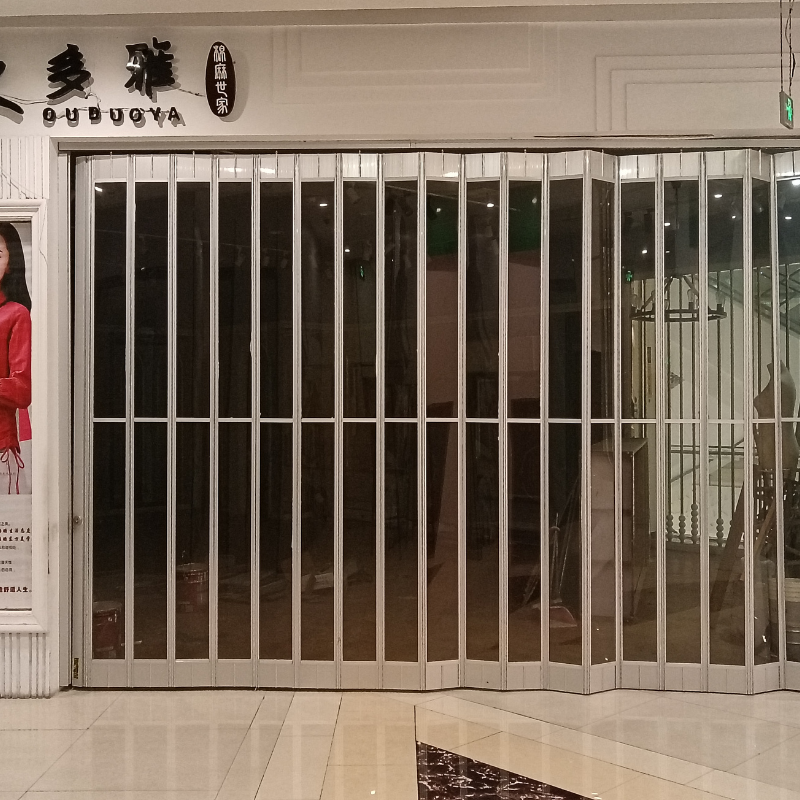

The ClearView Polycarbonate Folding Sliding Door is an ideal solution for commercial centers, shopping malls, and retail spaces where traditional roller shutters are impractical due to non-linear openings. Combining elegance, functionality, and robust security, this door allows shops to display goods even when closed, enhancing visual merchandising while ensuring protection. Its versatile design makes it suitable for a wide range of applications, including supermarkets, jewelry stores, coffee shops, club bars, and brand chain stores.

Key Advantages

• Elegant Design: Enhances modern commercial spaces with a sleek, transparent appearance.

• Cost-Effective: Affordable without compromising on quality or security.

• Easy Installation: Simplified suspension rail system requires no ground rail, reducing installation time and complexity.

• Burglary-Resistant: Engineered with reinforced aluminum frames and secure locking mechanisms to deter theft.

• Uninterrupted Visibility: Maintains clear product display after hours, leveraging polycarbonate’s high transparency and durability.

Applications
Ideal for:

• Supermarkets & Shopping Malls

• Jewelry Shops

• Coffee Shops & Club Bars

• Brand Chain Stores

Technical Specifications
Panel Options

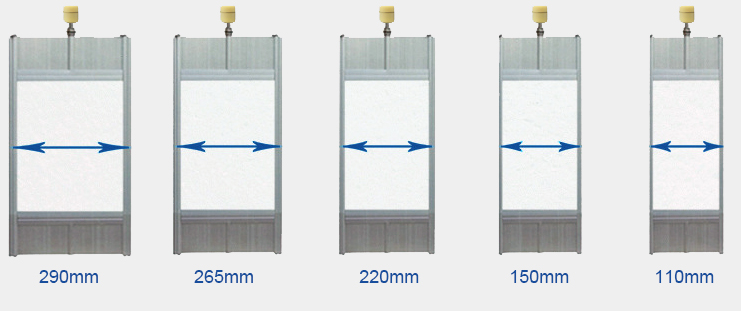

• Single Panel Width: 110mm, 150mm, 220mm, 265mm, 290mm

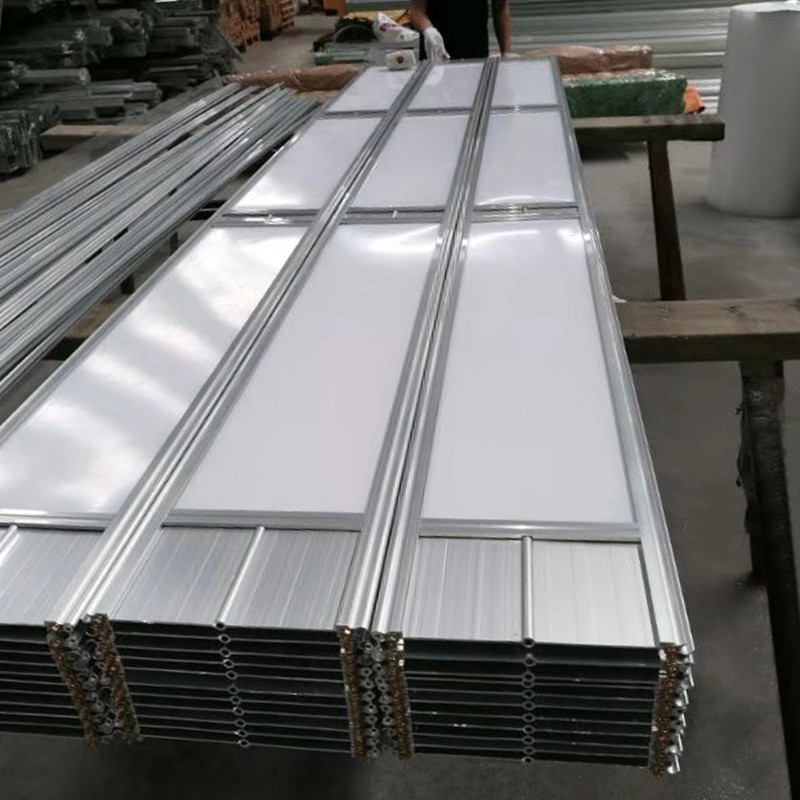

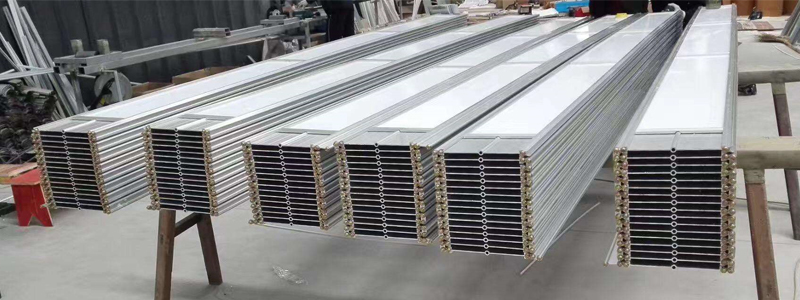

• Polycarbonate Panel: 1.5–2.0mm thick, aluminum-framed for enhanced security.

• Perforated Aluminum: 1.0–2.0mm with round/hexagonal holes (50% visibility and ventilation).

• Grill Panel: 10mm aluminum rod with 80% visibility and anti-theft functionality.


• Solid Aluminum: 2.0mm solid aluminum panel


• Operation: Manual or motorized.


Track System

• Straight Opening: 35mm × 45mm aluminum track (compatible with pre-formed curves).

• Curved Opening: 35mm × 55mm flexible aluminum track (easily bent for custom configurations).

Maximum Dimensions

• Width: Up to 35 meters.

• Height:

• Manual Operation: 4.5 meters.

• Motorized Operation: 6.0 meters.

Locking System

• Each door includes a dual-sided lock set (operable from both sides) with two keys.

• Ground bolts and dust covers provided (1 set per meter of width).

Aluminum Finish

• Standard: Powder-coated or anodized in natural aluminum, white, or black.

• Custom Colors: Available upon providing color samples.

Stacking Pocket Size

• Approximately 8% of total door width (exact size calculated based on project specifications).

Motor Specifications

• Voltage/Frequency: Single-phase 220V/50Hz; three-phase 380V/50Hz; 110V/60Hz.

• Remote Controls: 2+ included.

• Lifting Capacity: 300KG to 2000KG.

• Optional Features: Backup battery, alarm system, stopping device, smartphone control.

Warranty & Quality Assurance

• 5-Year Warranty: Covers manufacturing defects and includes replacement for transport-damaged panels.

Packaging & Delivery

• LCL Shipments: Plywood box packaging.

• FCL Shipments: Foam and carton packaging for optimal protection.
