Commercial Aluminum Security Grill Folding Door white coated

Details

Secure Ventilation Reinvented: Commercial Aluminum Folding Grill Door

Ideal for high-traffic retail spaces requiring integrated security and airflow

Engineered for versatile commercial applications, our Aluminum Side Folding Grill Door merges robust intrusion deterrence with optimized airflow. Its interlocking system of reinforced aluminum rods and panels ensures security while promoting critical ventilation—perfect for storefronts demanding visibility and climate control. Custom-curved rails adapt seamlessly to irregular openings, eliminating architectural constraints for luxury boutiques, supermarkets, jewelry stores, or entertainment venues.

Why It Outperforms Standard Security Doors

✅ Archural Flexibility
Curved rail technology accommodates circular, angled, or asymmetrical entries—no onsite welding needed

✅ Heavy-Duty Load Capacity
2000KG-rated motors support multi-panel installations in airports, showrooms, or large venues

✅ Optimized Airflow & Security
10mm rod spacing blocks intrusion while enabling 40%+ airflow versus solid doors

✅ Weather-Resistant Finish
UV-stable coatings prevent fading in tropical/coastal environments (standard: silver/white/black; custom Pantone colors available)

✅ Smart Automation
Optional 110V–380V motors with battery backup, remote/smartphone controls, and alarm sensors

Technical Specifications

Feature	Details

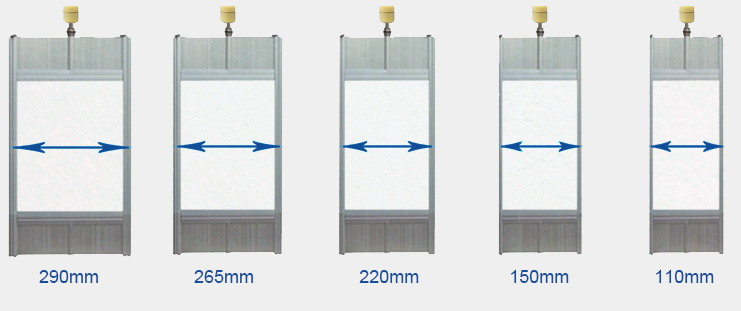

Panel Options	9 widths (100–300mm); 10mm-diameter aluminum rods in precision frames
Operation Modes	Manual (up to 4.5m height) or motorized (up to 6.0m height)
Track Systems	35×45mm (pre-bent for curves) or 35×55mm (factory-optimized for curves)
Max Coverage	Expansive 35m width capacity
Locking Mechanism	Dual-sided cylinder locks + ground bolts/dust covers per meter width
Material	Reinforced aluminum with powder coating/anodizing

Precision Engineering & Support

Stacking Efficiency: Pocket depth calculated at 8% of total width (CAD project designs provided)
Global Logistics: Plywood crates (LCL) or foam-sealed cartons (FCL)
Warranty: 5-year structural guarantee with defect replacements
