Product Overview

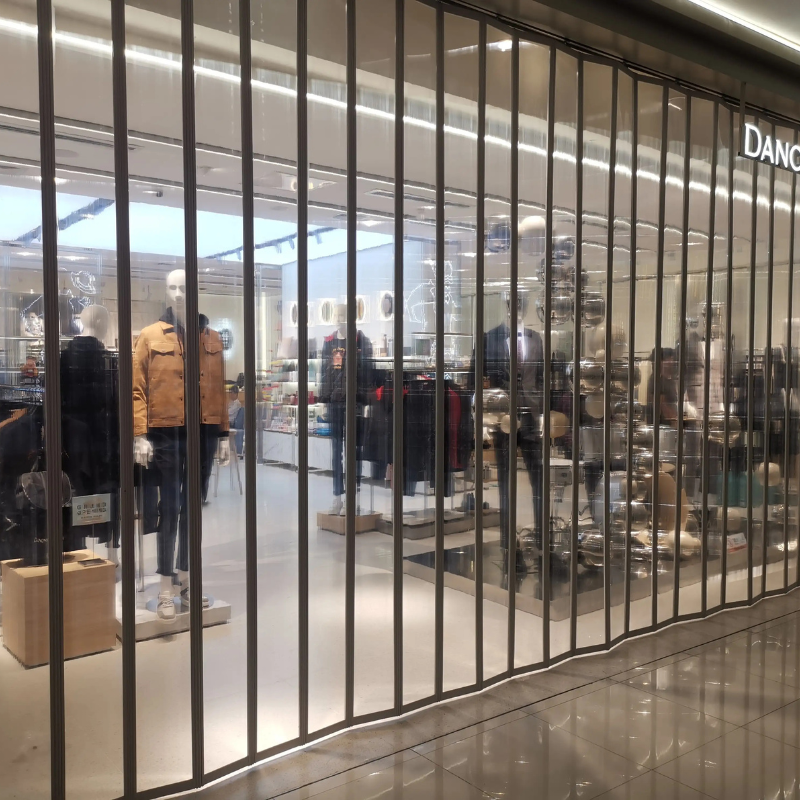

Crafted for contemporary retail and commercial spaces, the Full Vision Crystal Folding Door combines a sleek aluminum framework with high-transparency panels to create a seamless visual experience.

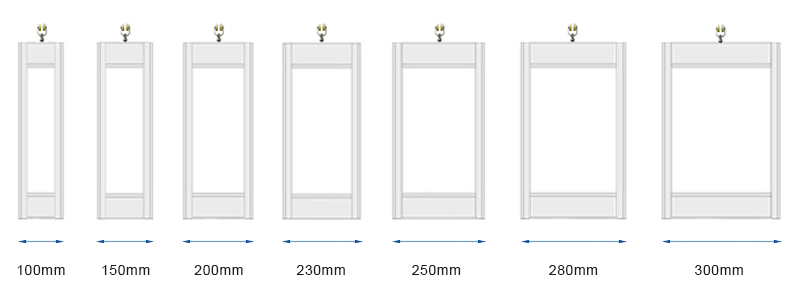

Unlike conventional folding doors, its minimalist design maximizes unobstructed visibility while reinforcing security, making it ideal for high-traffic environments such as shopping malls, luxury boutiques, and hospitality venues. The door’s customizable panel widths and robust construction ensure both aesthetic appeal and functional resilience.

Ideal Applications
Perfect for spaces requiring transparency and security:

• Supermarkets & Shopping Centers

• Jewelry & Luxury Goods Stores

• Cafés & Coffee Shops

• Nightclubs & Lounge Bars

• Brand Retail Chains

• Automotive Care Centers

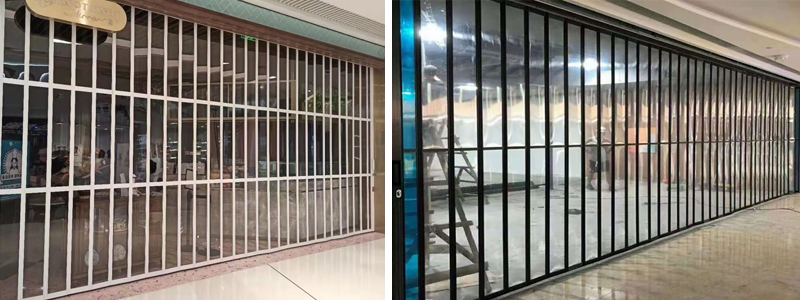

Panel Variants

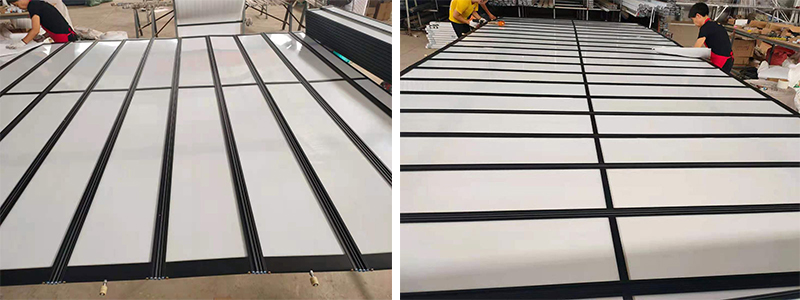

• Crystal Polycarbonate Panels: 1.5–2.0mm thickness, framed in aluminum for impact resistance and burglary protection.

• Perforated Aluminum Panels: 1.5–2.0mm with round/hexagonal perforations for ventilation and partial visibility.

• Security Grill Panels: 10mm aluminum rods offering 80% visibility with enhanced anti-intrusion properties.

• Operation: Manual or motorized systems available.

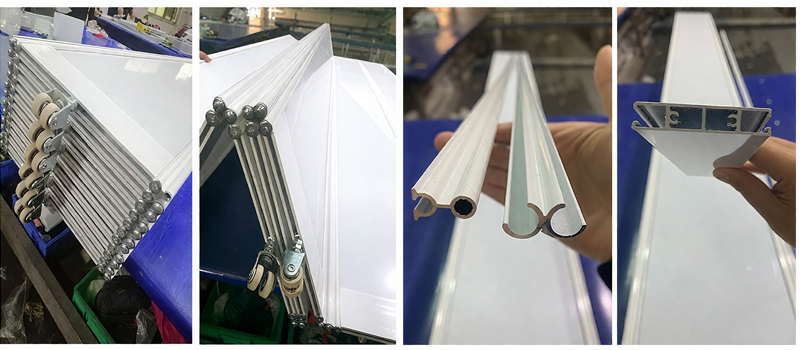

Track Systems

• 25mm×35mm Aluminum Track: Designed for straight openings; pre-bendable for curved layouts.

• 25mm×30mm Flexible Track: Optimized for curved configurations while compatible with standard installations.

Dimensions & Performance

• Max Width: Up to 35 meters

• Max Height:

• Manual Operation: 4.5 meters

• Motorized Operation: 6.0 meters

• Security Locking: Dual-sided lock sets with key access, ground bolts, and dust covers (1 set per meter).

Customization & Finishes

• Standard Finishes: Natural aluminum, white, and black (powder-coated or anodized).

• Custom Colors: Available based on provided samples.


Motorized Operations

• Voltage Options: Single-phase 220V/50Hz, three-phase 380V/50Hz, or 110V/60Hz.

• Lifting Capacity: 300KG to 2000KG.

• Features: Remote controls (2+ units), battery backup, alarm integration, stopping mechanisms, and smartphone connectivity.

Stacking & Installation

• Stacking Space: Requires ~8% of total width (custom calculations provided).

• Installation: Professional support available for complex configurations.

Warranty & Shipping

• Warranty: 5-year coverage including panel replacement for transit damage.

• Packaging: Plywood boxes for LCL shipments; foam and cartons for FCL consignments.
