Clear Polycarbonate Slat for rolling shutter PC-80
Polycarbonate Slats: Unbreakable Security with high transparency
security meets crystal-clear visibilityy in our premium polycarbonate slats—engineered for modern security shutters that defy compromise.
Core Product Definition
The Transparent Rolling Door Slat forms the backbone of high-visibility polycarbonate shutters and folding doors. Manufactured from 100% virgin polycarbonate (PC) resin—sourced from industry leaders like LOTTE or SABIC—each slat integrates with extruded aluminum connectors to create a seamless, impenetrable security curtain. This system delivers unparalleled durability while maintaining 80–90% light transmission, blending robust protection with uncompromised visibility.
Technical Specifications
| Model No. | Size | Weight (kg) | Center Thickness (mm) | Side Thickness (mm) |
|---|---|---|---|---|
| PC-50 | 50mm × 98m | 11 | 1.2–2.0 | 4.5 |
| PC-60 | 60mm × 98m | 13 | 1.2–2.0 | 4.5 |
| PC-70 | 70mm × 98m | 15 | 1.2–2.0 | 4.5 |
| PC-80 | 80mm × 98m | 17 | 1.2–2.0 | 4.5 |
| PC-100 | 100mm × 98m | 20 | 1.2–2.0 | 4.5 |
| PC-120 | 120mm × 98m | 24 | 1.2–1.4 | 4.5 |
| PC-150 | 150mm × 98m | 30 | 1.2–1.4 | 5.2 |
| PC-180 | 180mm × 98m | 35 | 2.0 | 5.2 |
Applications: Where Security Meets Aesthetics

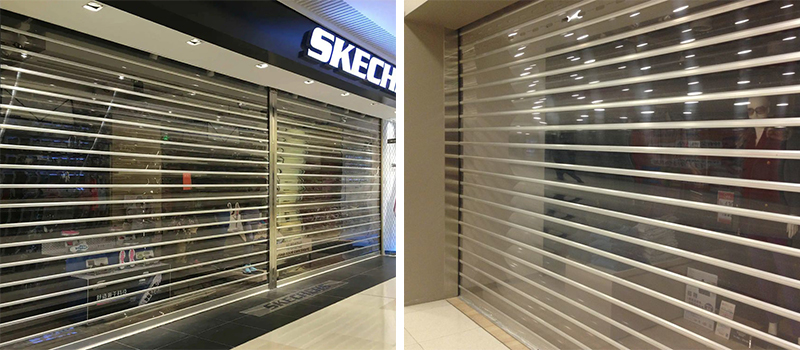

Retail: Theft-resistant storefronts for luxury boutiques and chain stores, enabling nighttime product visibility and 24/7 advertising impact.
Finance: Transparent barriers for bank teller windows during closures, ensuring security without obstructing customer interactions.
Hospitality: Weatherproof enclosures for restaurant patios, merging panoramic views with climate resilience.
Residential: Elegant window replacements in high-end homes, combining safety with aesthetic sophistication.
Key Advantages
See-Through Security
Adjustable transparency (via slat thickness) allows full storefront visibility after hours, transforming shutters into dynamic advertising displays.
Unbreakable Durability
200× stronger than glass and 30× tougher than acrylic, defeating forced entry, vandalism, and impact damage.
All-Weather Endurance
Flawless performance across -40°C to 120°C (-40°F to 248°F), backed by a 20-year outdoor lifespan.
Integrated Sunshade & UV Blocking
Blocks **>80% of ultraviolet radiation**, preventing material yellowing and degradation while reducing solar heat gain.
Energy Efficiency
10× superior thermal retention and 4× better insulation vs. glass, slashing HVAC costs.
Noise Reduction
3–4 dB sound insulation (outperforming glass) for quieter interiors in high-traffic urban zones.
Featherlight Design
At 5 kg/m² (1/3 the weight of steel), minimizes strain on motors and tracks, enabling effortless operation.
Eco-Certified Sustainability
ROHS-compliant and 100% recyclable, reducing environmental footprint without sacrificing performance.
Premium Customization
Optical Options: Clear, frosted, or tinted finishes (e.g., blue, bronze, opal).
Fire Safety: UL94 V-0/V-2 flame-retardant configurations, self-extinguishing within seconds.
Branding: Laser-engraved logos or proprietary markings for seamless corporate integration.
Manufacturing Excellence
High-Volume Output: 5,000 meters/day via automated injection molding, ensuring scalable supply.
Global Packaging: Anti-scratch bags or reinforced cartons on pallets for damage-free logistics.
5-Year Warranty: Free replacement for defects under normal use, reflecting confidence in longevity.
