Clear PET Panel Transparent Folding Door Material
PET Folding Door Panel: Unbreakable Transparency with Eco-Smart Security
Military-grade protection meets crystal-clear visibility—engineered for modern spaces where aesthetics and impenetrability converge without compromise.
Core Product Definition

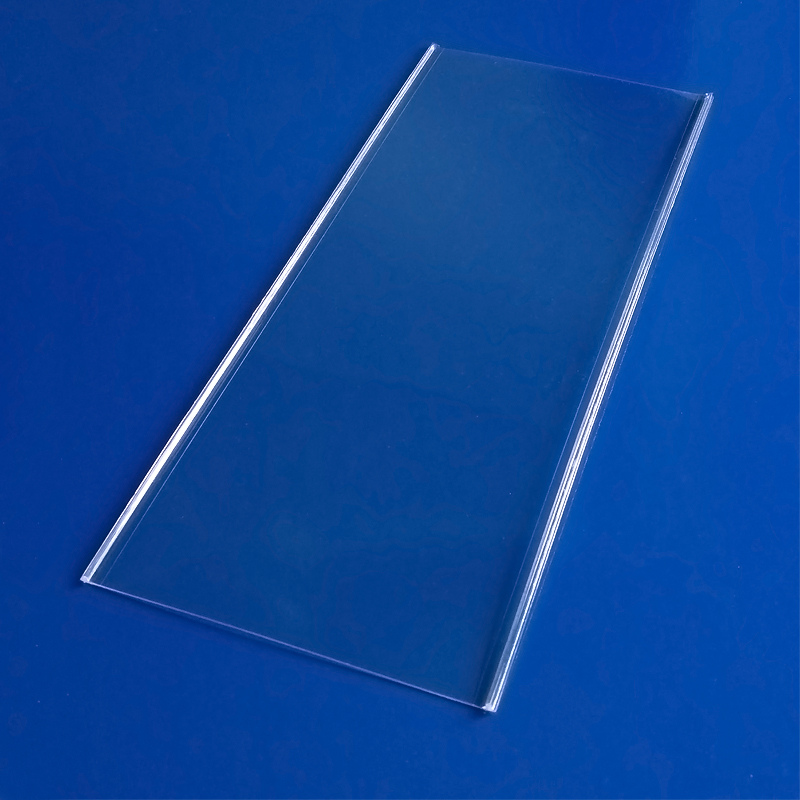

The PET Transparent Folding Door Panel forms the structural core of high-visibility accordion and sliding folding doors. Manufactured from 100% virgin PET resin—the same food-grade material used in beverage bottles and medical packaging
—each panel integrates with extruded aluminum connectors to create a seamless, tamper-resistant security curtain. This system delivers extreme durability while maintaining 80–90% light transmission, merging robust defense with uncompromised visibility.
Technical Data
| Model No. | Size | Weight (kg) | Center Thickness (mm) | Side Thickness (mm) |
|---|---|---|---|---|
| PET-80 | 80mm × 50m | 6.5 | 1.2–1.4 | 4.5 |
| PET-110 | 110mm × 50m | 9 | 1.2–1.4 | 4.5 |
| PET-150 | 150mm × 50m | 12 | 1.2–1.4 | 4.5 |
| PET-180 | 180mm × 50m | 14.5 | 1.2–1.4 | 4.5 |
| PET-225 | 225mm × 50m | 18 | 1.2–1.4 | 4.5 |
| PET-250 | 250mm × 50m | 20 | 1.2–1.4 | 4.5 |
| PET-268 | 268mm × 50m | 21.5 | 1.2–1.4 | 5.2 |
| PET-318 | 318mm × 50m | 25 | 1.2–1.4 | 5.2 |
Applications: Security Meets Design Sophistication

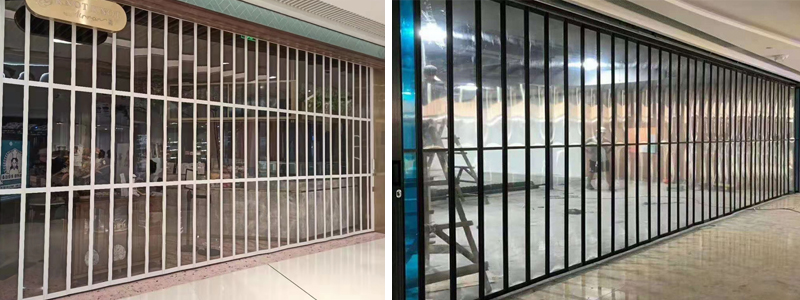

Retail: Theft-resistant storefronts for luxury boutiques and chains, enabling 24/7 product visibility and advertising impact
Finance: Transparent barriers for bank tellers during closures, ensuring security without disrupting customer engagement.
Hospitality: Weatherproof enclosures for restaurant patios, combining panoramic views with climate resilience (-40°C to 120°C).
Residential: Elegant window replacements in high-end homes, fusing safety with minimalist aesthetics.
Commercial Offices: Space-divider partitions with acoustic insulation (3–4 dB noise reduction).
Key Advantages
See-Through Security
Adjustable transparency (via panel thickness) enables after-hours storefront visibility, turning doors into advertising canvases.
Unbreakable Durability
30× tougher than acrylic and far stronger than glass—resisting forced entry, impacts, and vandalism.
All-Weather Endurance
Flawless performance from -40°C to 120°C (-40°F to 248°F), backed by a 20-year outdoor lifespan.
Acoustic Comfort
3–4 dB sound insulation for quieter interiors in urban zones.
Featherlight Design
At 5 kg/m² (1/3 steel’s weight), reduces motor/track strain for effortless operation.
Eco-Certified Sustainability
ROHS-compliant and 100% recyclable—utilizing food-safe PET with near-zero formaldehyde.
Premium Customization
Optical Finishes: Clear, frosted, or tinted (blue, bronze, opal).
Fire Safety: UL94 V-0 certified—self-extinguishing in seconds.
Branding: Laser-engraved logos for corporate identity.
Surface Textures: High-gloss mirror effects or anti-fingerprint matte finishes.
Manufacturing Excellence

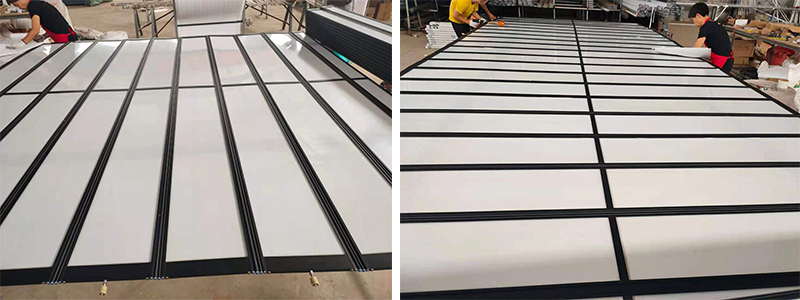

High-Volume Output: 5,000 meters/day via automated co-extrusion for global scalability
Smart Packaging: Anti-scratch bags or reinforced cartons on pallets for zero-damage logistics.
Extended Warranty: 5-year coverage with defect replacement, validating extreme-weather reliability.
