Anti-UV Polycarbonate Rolling shutter slat PC-100
Anti UV Polycarbonate Slat: Unbreakable Security with Crystal Clarity
The essential component for modern security shutters that blend robust protection with unmatched visibility.
Core Product Definition

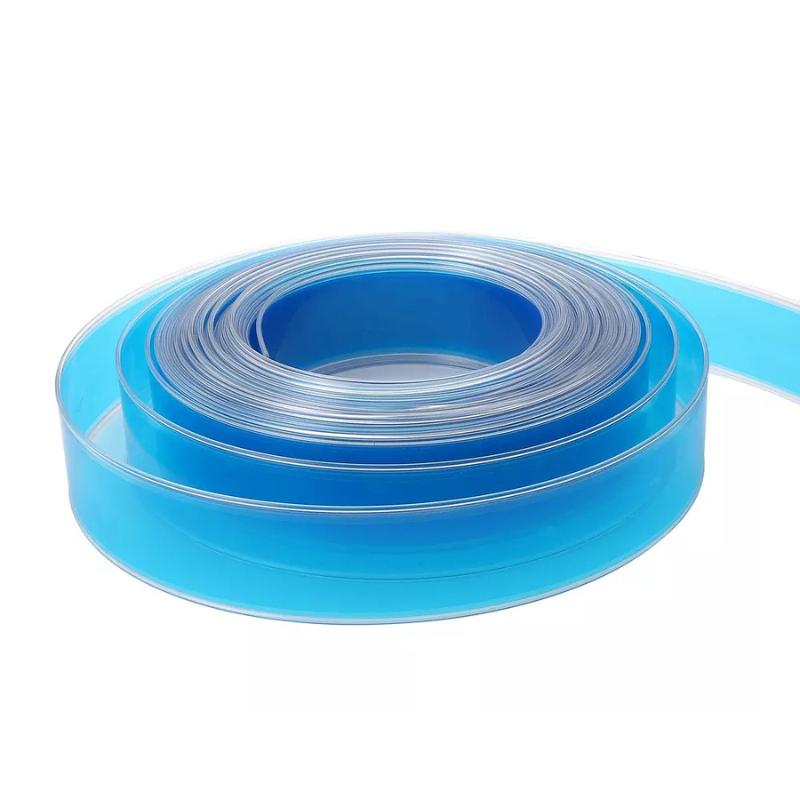

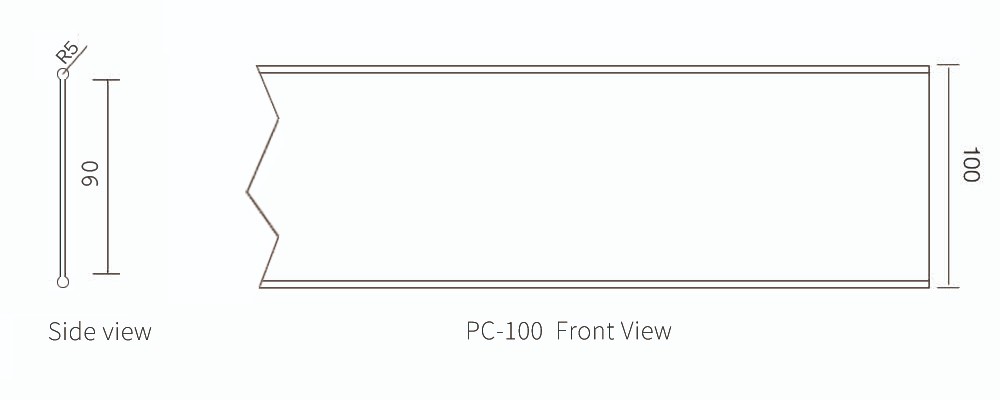

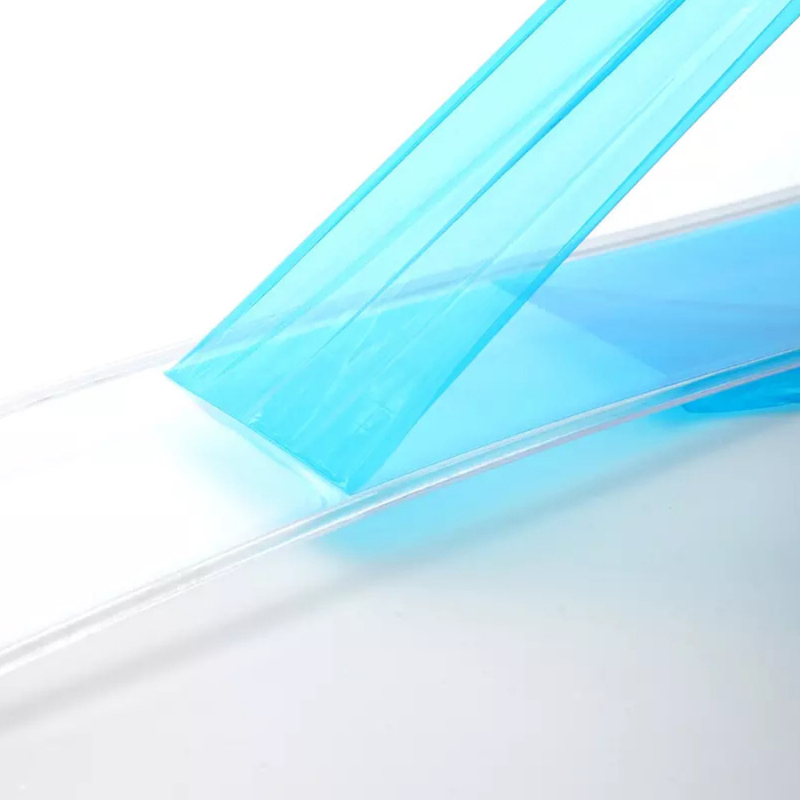

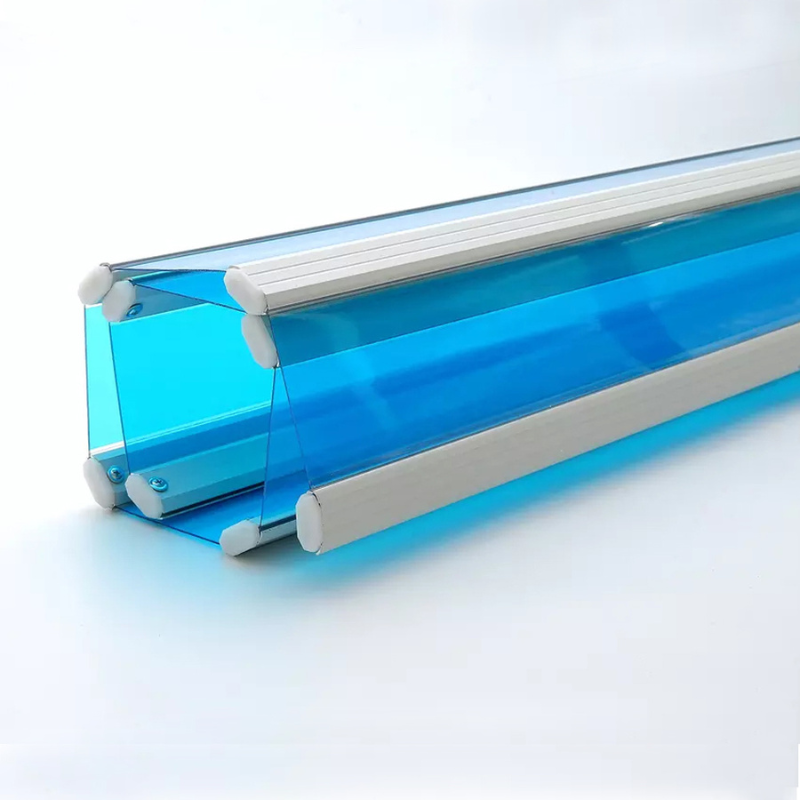

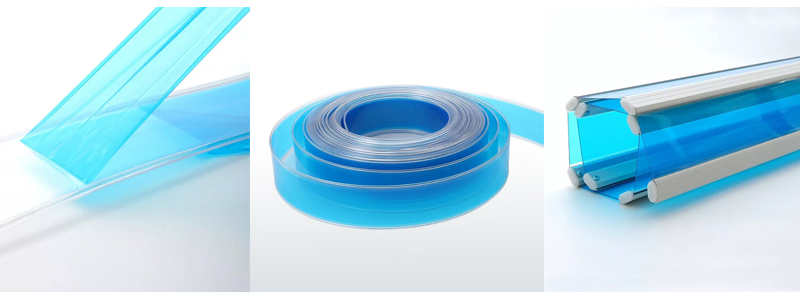

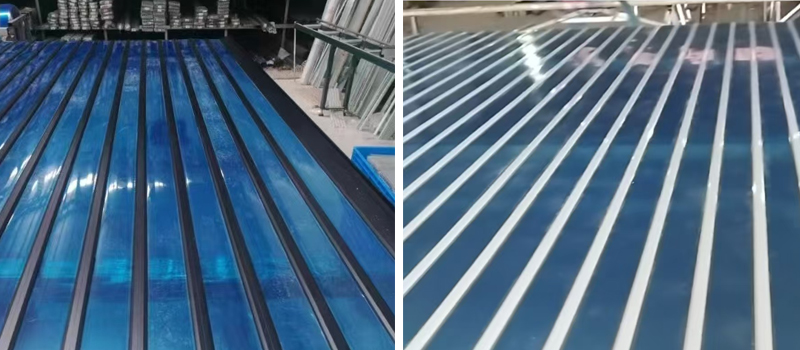

The PC100 Transparent Rolling Door Slat is the critical building block of clear-view polycarbonate shutters and Sliding folding doors. Crafted from 100% virgin polycarbonate (PC) resin, it interlocks with extruded aluminum connecting bars and auxiliary hardware to create a complete security curtain. This system merges military-grade durability with high transparency—offering both protection and unobstructed views
Technical Data
| Model No. | Size | Weight(kg) | Center Thickness(mm) | Side Thickness(mm) |
| PC-50 | 50mm×98m | 11 | 1.2/1.4/1.6/1.8/2.0 | 4.5 |
| PC-60 | 60mm×98m | 13 | 1.2/1.4/1.6/1.8/2.0 | 4.5 |
| PC-70 | 70mm×98m | 15 | 1.2/1.4/1.6/1.8/2.0 | 4.5 |
| PC-80 | 80mm×98m | 17 | 1.2/1.4/1.6/1.8/2.0 | 4.5 |
| PC-100 | 100mm×98m | 20 | 1.2/1.4/1.6/1.8/2.0 | 4.5 |
| PC-120 | 120mm×98m | 24 | 1.2/1.4 | 4.5 |
| PC-150 | 150mm×98m | 30 | 1.2/1.4 | 5.2 |
| PC-180 | 180mm×98m | 35 | 2.0 | 5.2 |

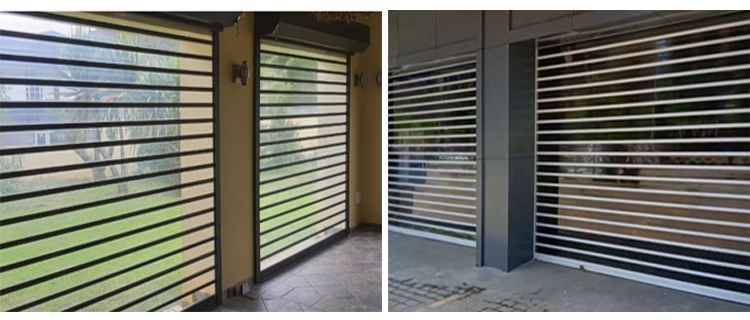

Applications: Security Meets Aesthetics
Retail: Chain stores (theft-resistant showcases), Brand store (nighttime product visibility)
Finance: Bank teller windows (transparent barriers during closures)
Hospitality: Restaurant patios (weatherproof enclosures with views)
Residential: Luxury homes (elegant window replacements)
Why Choose Polycarbonate Slats?
See-through security: 80–90% light transmission (adjustable by slat thickness) enables full storefront visibility after closing hours—turning shutters into 24/7 advertising displays
Unbreakable design: 200x stronger impact resistance than glass and 30x tougher than acrylic, defeating forced entry
Anti UV: Protection against ultraviolet radiation, the material is not easily aged or yellowed
All-weather endurance: Performs flawlessly from -40°C to 120°C (-40°F to 248°F) with a 20-year outdoor lifespan
Energy efficiency: 4x better heat insulation and 10x superior thermal retention vs. glass—slashing HVAC costs
Noise reduction: 3–4dB sound insulation (outperforming glass) for quieter interiors in high-traffic areas
Featherlight weight: At just 5 kg/m² (1/3 the weight of steel shutters), it minimizes strain on motors and tracks
Eco-certified: ROHS-compliant recyclable materials reduce environmental footprint
Premium Materials & Customization
Elite sourcing: Raw PC resin from LOTTE and Sabic—industry benchmarks for optical clarity and structural integrity
Tailored solutions: Support custom transparency (clear/frosted/colored), fire-rated configurations (HB/V2 flame retardancy), and branded engraving
Manufacturing Excellence & Support
High-volume production: 5000 meters/day via automated injection molding—urgent orders accommodated with 7-day advance notice
Global-ready packaging: Anti-scratch bags or cartons packed with pallets for damage-free shipping
5-year warranty: Free replacement for products with quality issue(under normal use)
