Stainless Steel Security Grill Rolling Shutter
Advanced Protection with Visibility & Ventilation
Safeguard commercial, industrial, or residential properties without compromising airflow or visibility. Our stainless steel rolling shutter combines military-grade security with elegant design, engineered to deter intrusions while maintaining ambient light and ventilation—ideal for high-risk venues like banks, retail stores, and nightclubs
Key Applications
○ Storefronts (glass door/window reinforcement)
○ Bank teller counters & automatic sliding glass barriers
○ Bars, clubs, and partition security
○ Balconies, warehouses, and garage access points
○ Customizable for openings up to 12,000 mm
Security-First Engineering
○ Anti-Theft Construction
○ 19 mm outer stainless-steel tubes (1 mm wall) interlocked with 16 mm inner tubes (0.8 mm) and 2 mm steel links.
○ Durable Components
○ 304 stainless-steel guide rails (60–120 mm) and galvanized steel shaft resist corrosion and forced entry.
○ Intelligent Safety
○ Optional auto-stop sensors, alarm triggers, and emergency brakes prevent accidental drops.
Design Advantages
○ Unobstructed Visibility: Tube-and-grille design maximizes transparency for surveillance.
○ Optimized Airflow: Open structure enables natural ventilation, reducing HVAC costs.
○ Aesthetic Versatility: Brushed 304 stainless-steel finish elevates building aesthetics; 201/304 material options available.
Security Grill Rolling Shutter Components

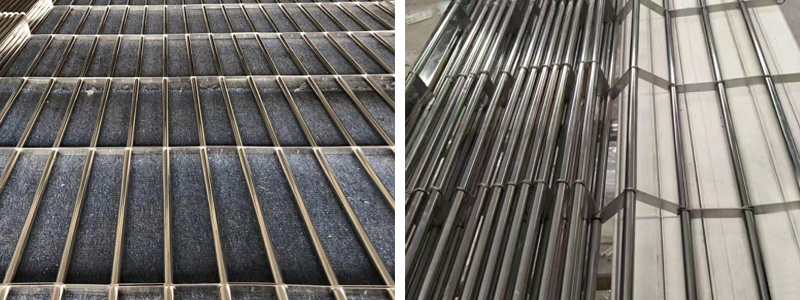

○ Curtain Assembly
○ 19 mm outer tubes (1 mm) + 16 mm inner tubes (0.8 mm) + 2 mm links, welded end clips eliminate lateral movement.
○ Bottom Rail
○ Corrosion-resistant 201/304 stainless steel—no rust, no warping.
○ Guide Rails
○ Precision-engineered 201/304 stainless-steel profiles (60–120 mm) ensure smooth curtain tracking.
○ Drive Shaft
○ Hot-dip galvanized steel core for rustproof longevity.
Operational Flexibility
○ Manual: Hand/hook push-up/down for fail-safe access.
○ Automatic: Motor-driven with remote/switch control for effortless operation.
Global Shipping
○ FCL: Foam & carton packaging
○ LCL: Plywood box protection
○ Certified for industrial logistics compliance
Note:
· New units may have mild factory odor (dissipates within 48 hrs).
· Allow 0.5 cm expansion gap when specifying measurements.
Reimagine Boundaries—where clarity meets adaptability.
Specifications align with industrial standards for aluminum structures (GB/T 8478-2020).
