Steel Grill Wire Security Mesh Rolling Shutter Door
Iron Grill Wire Security Mesh Rolling Shutter Door
Security, Visibility, and Ventilation in One Solution
PRODUCT OVERVIEW
Safeguard your property against unauthorized intrusion while maintaining visibility and airflow with our Mesh Rolling Shutter Door. Engineered from robust stainless-steel tubes and interlinked grilles, this shutter combines formidable security with an open design—ideal for spaces requiring both protection and environmental control.
Technical data
| Hole size(mm) | Material | Thickness | Max size | Weight/sqm |
| 170 | GI/SS201/SS304 | 1.0mm | 12m×6m | 4KG |
| 140 | GI/SS201/SS304 | 1.0mm | 12m×6m | 4.5KG |
| 120 | GI/SS201/SS304 | 1.0mm | 12m×6m | 5KG |
| 100 | GI/SS201/SS304 | 1.0mm | 12m×6m | 6KG |
KEY FEATURES
Uncompromising Security

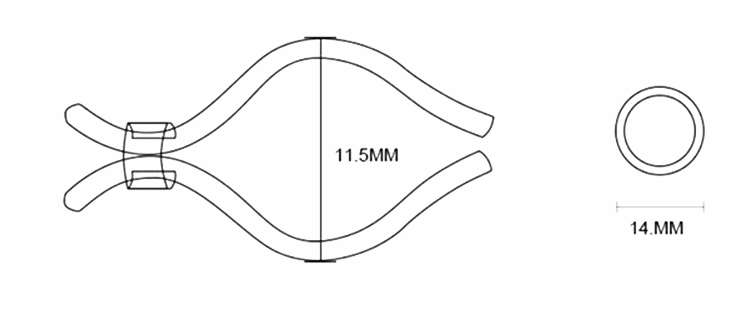

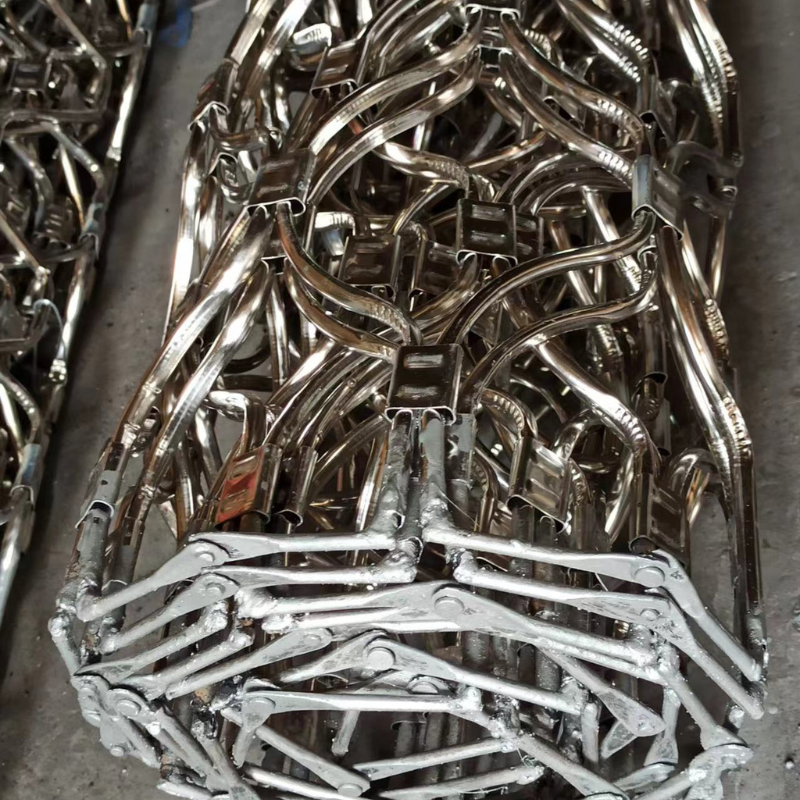

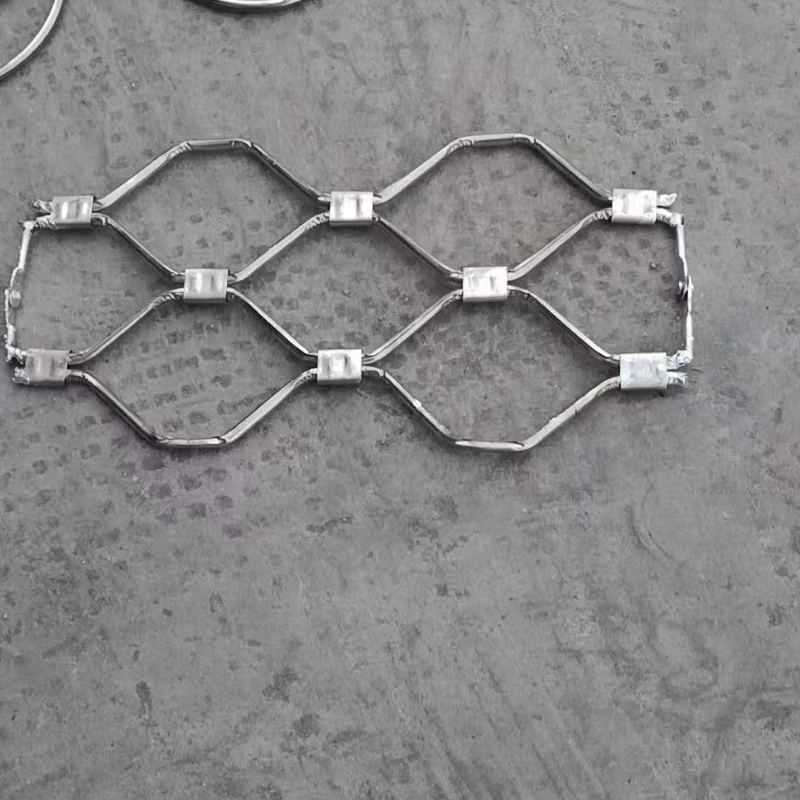

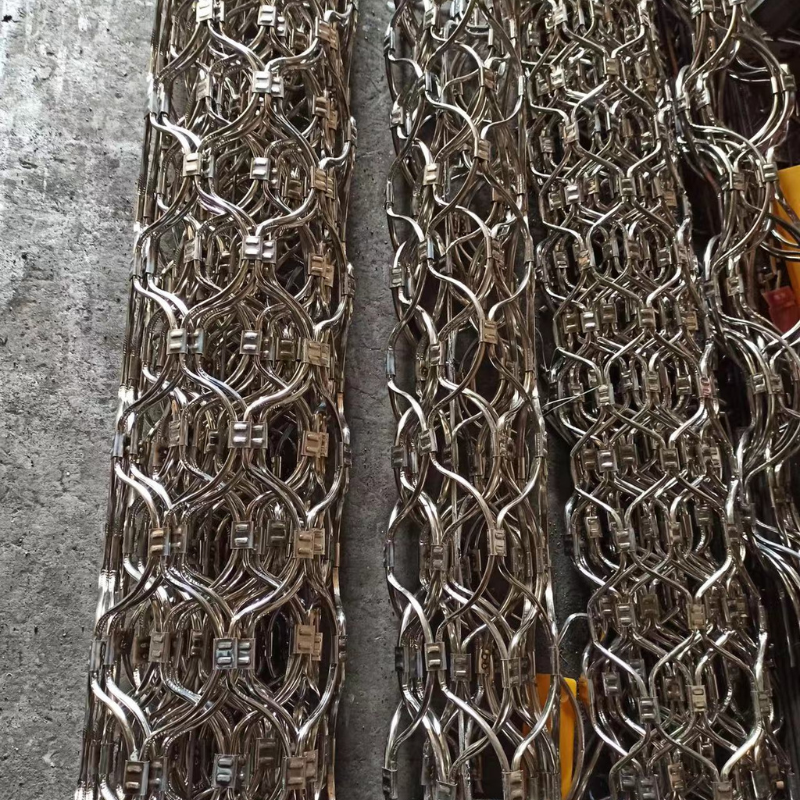

14mm stainless-steel tubes (1mm thickness) form the primary curtain, interlocked with stainless-steel links to resist cutting or prying.
Welded end clips prevent lateral curtain movement, ensuring structural integrity.
Optimized Visibility & Ventilation

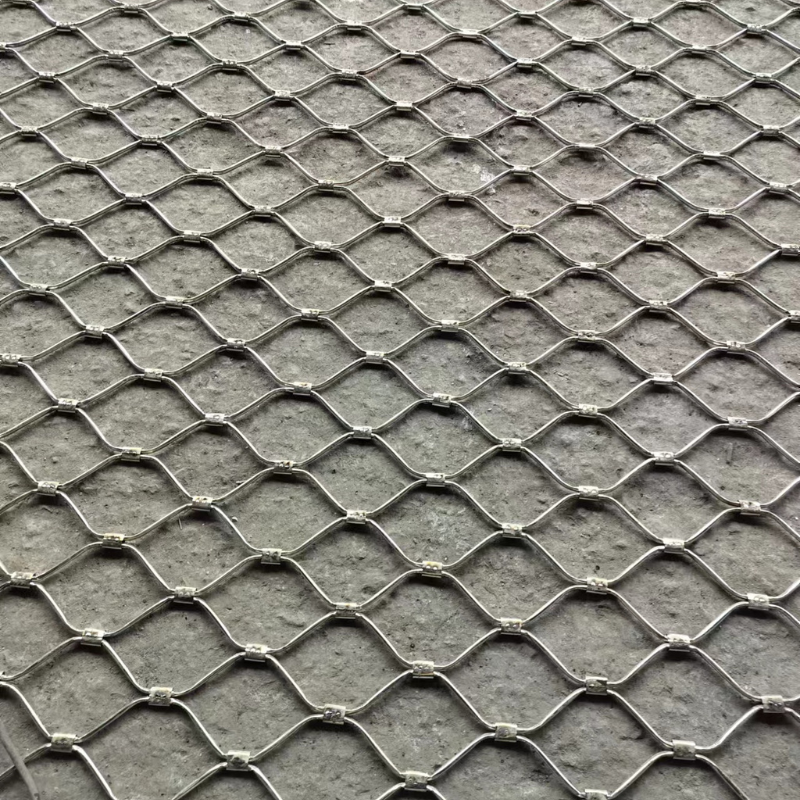

Grille-based design offers clear sightlines and continuous airflow, unlike solid shutters.
Ideal for environments requiring natural light and air circulation without compromising safety
Customizable for Large Openings
Spans up to 12,000mm, accommodating expansive entrances (e.g., warehouses, showrooms)
Durable Construction
Bottom Rail: 201/304 stainless steel to block dust, rain, and insects.
Guide Rails: 60–120mm stainless steel profiles for smooth operation.
Shaft/Axle: Galvanized steel (non-iron) to prevent rust and ensure longevity
Aesthetic Appeal
Sleek stainless-steel finish enhances building aesthetics, adding value to commercial or residential properties
Operational Flexibility
Manual: Hand/hook operation (push-up/down).
Automatic: Motor-driven with remote controls or switch buttons
OPTIONAL UPGRADES
Shutter Box: Customizable to site requirements.
Safety Brake: Prevents sudden curtain falls (critical for large openings).
Alarm System: Triggers motor alarm during break-in attempts
Stopping Device: Automatically halts if obstacles are detected
Material Choices: Galvanized steel, 201 stainless steel, or 304 stainless steel.
APPLICATIONS
Designed for versatility across sectors:
Commercial: Shopping centers (behind/ahead of storefront glass), banks (adjacent to sliding doors), bars/clubs, counters.
Industrial: Warehouses, loading docks, partition zones
Residential: Doorways, balconies, partition areas, garages
