Full Vision Polycarbonate Roller Door: Secure Transparency for 24/7 Display

Ideal for commercial storefronts, luxury boutiques, and high-traffic venues, the Full Vision Polycarbonate Roller Door delivers unmatched security while showcasing products day and night. Combining the strength of reinforced aluminum with crystal-clear polycarbonate slats, this door deters burglaries and maximizes visibility—even when closed.

Technical Specifications

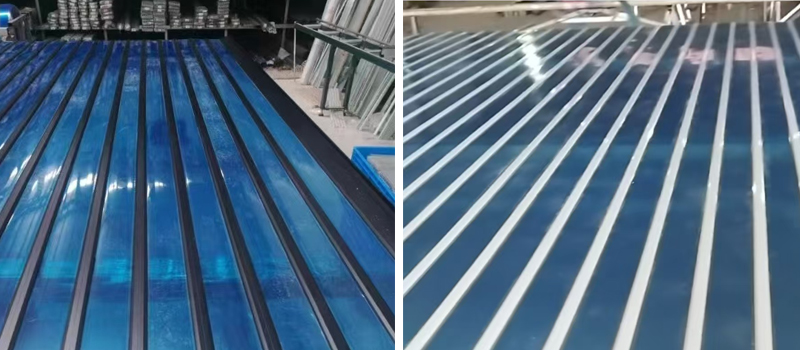

1. Curtain System

• Material: High-transparency polycarbonate slats + powder-coated aluminum bars

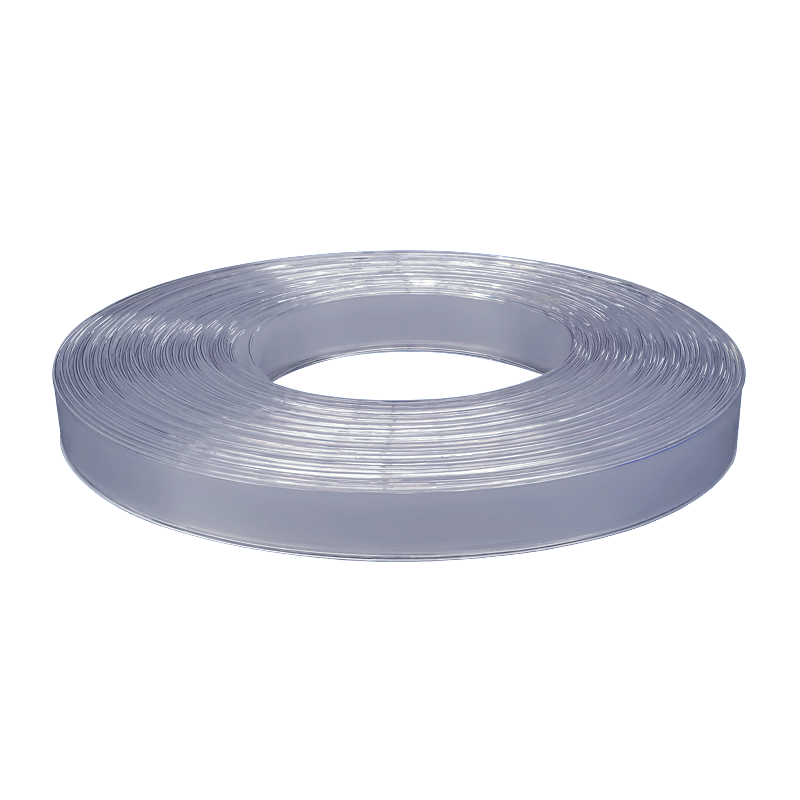

• Polycarbonate Slats:

• Size: 100mm × 100mm

• Thickness: 1.2–2.0mm

• Color: Transparent (80–90% light transmission)

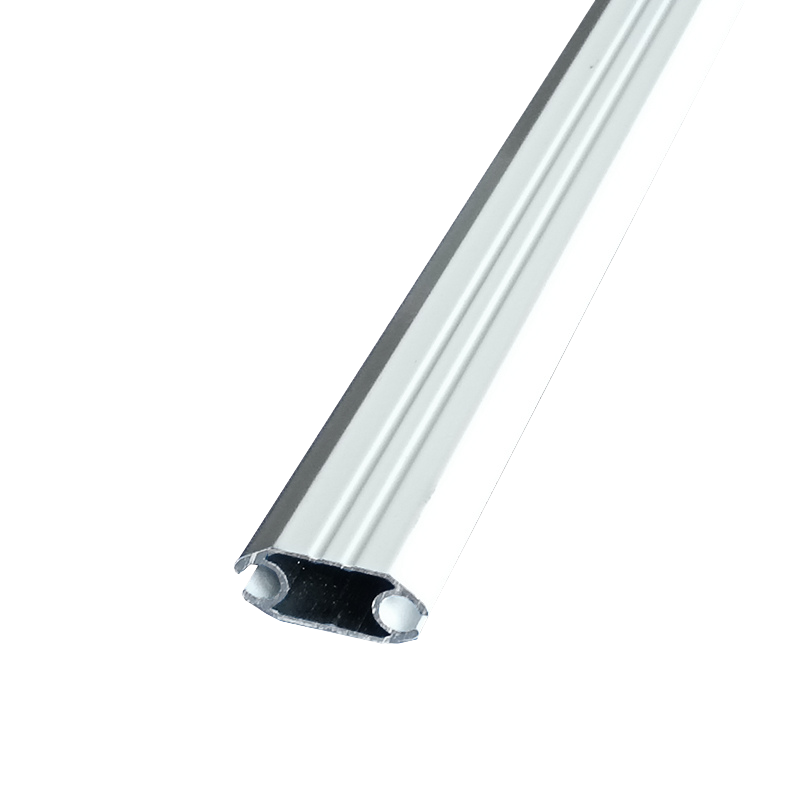

• Aluminum Bars:

• Size: 33mm × 1.5mm

• Thickness: 0.8–1.0mm

• Colors: White, black, or natural aluminum

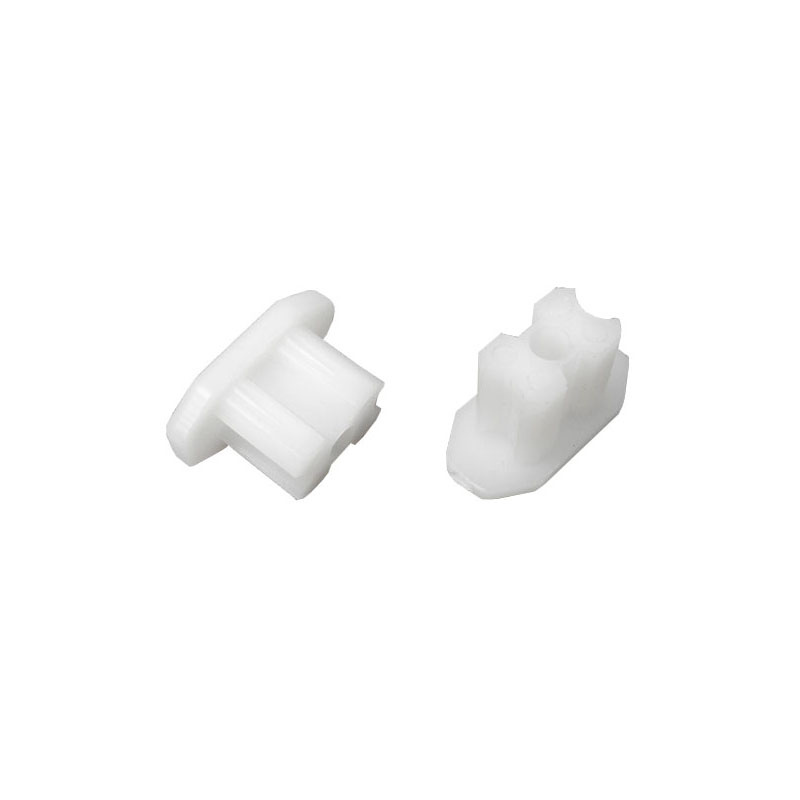

• Security Features: Plastic end caps prevent slat slippage and lateral movement

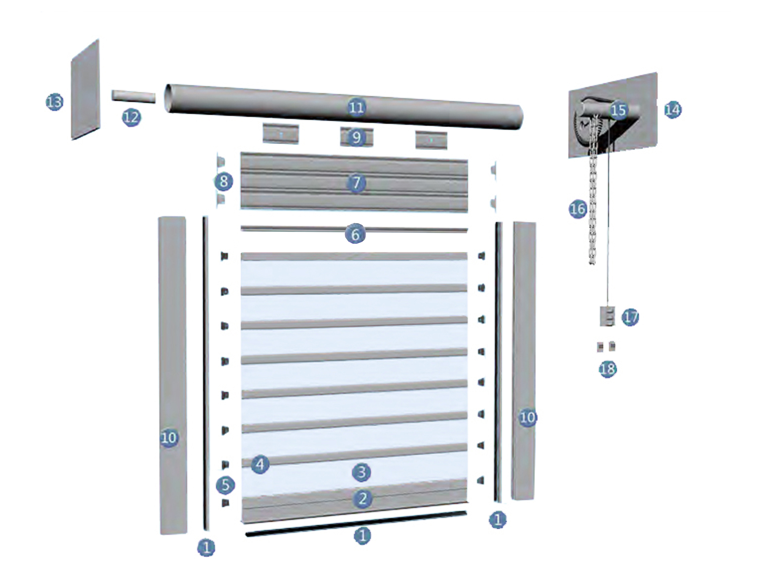

2. Structural Components

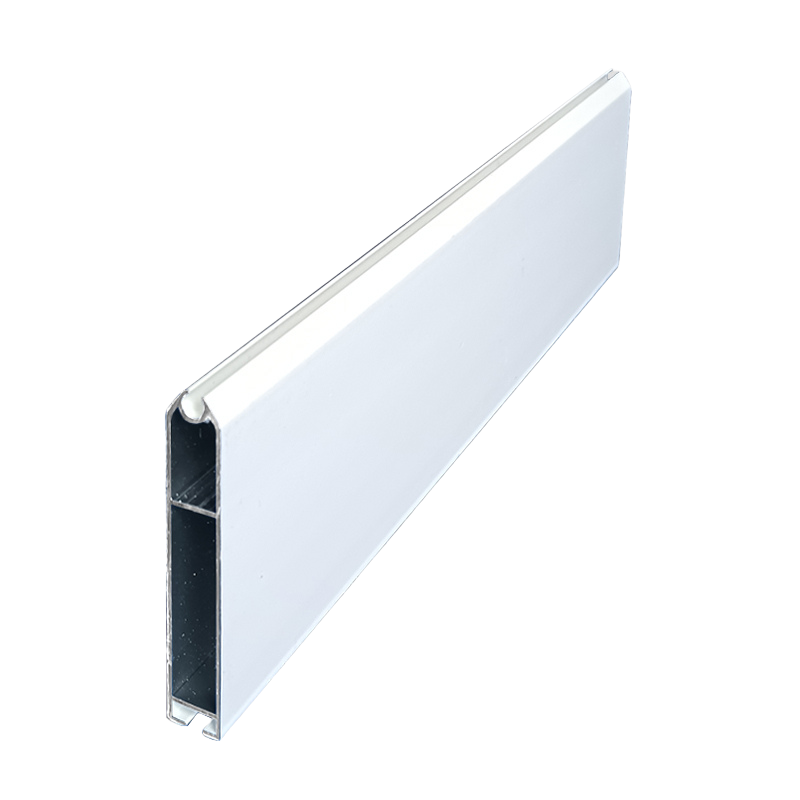

• Bottom Rail:

• Motorized: 100mm × 15mm | Manual: 80mm × 40mm

• Thickness: 1.0mm

• Accessories: Rubber tube, padlock, and padlock strip.

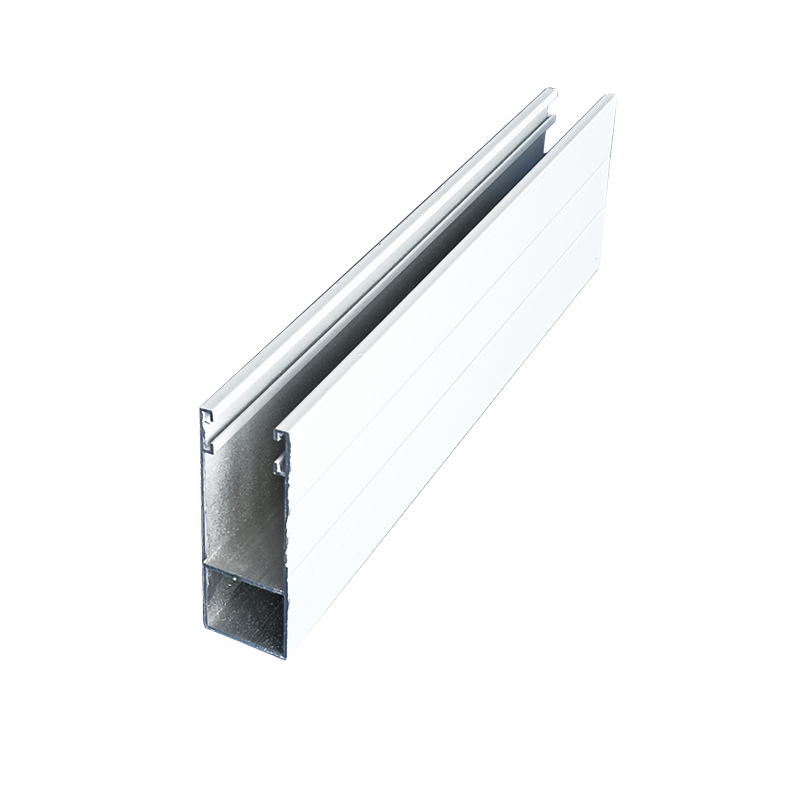

• Guide Rails:

• Size: 100mm × 40mm or 80mm × 40mm

• Thickness: 2.0mm

• Noise Reduction: Integrated brush strips ensure quiet operation.

• Top Hook & Shaft:

• Galvanized Steel Slats: 0.6–1.0mm thickness, powder-coated.

• Shaft: Galvanized steel, diameters 3"–10" (wall thickness: 1.0–3.0mm).

3. Motorized Operation

• Motor Options:

• Voltage: 220V/50Hz (single-phase), 380V/50Hz (three-phase), or 110V/60Hz.

• Lifting Capacity: 300–2000KG.

• Control Systems:

• Remote controls (2+ included), switch buttons, or manual crank.

• Add-ons: Backup battery, alarm system, smartphone integration.


Unmatched Features

• Security & Durability:

• 200× stronger impact resistance than glass

  —withstands forced entry.

• Flame retardant (Class I/V2 rating).

• All-Weather Performance:

• Stable in -40°C to 120°C.

• UV resistance blocks 80% of solar ultraviolet rays.

• Energy Efficiency:

• 10× better heat insulation and 3–4dB superior soundproofing vs. glass.

• Eco-Friendly:

• Recyclable polycarbonate (ROHS-compliant).

• Lightweight Design:

• Curtain weight: ~5 kg/m² (eases installation and reduces structural load).


Applications

Perfect for:
✅ Luxury boutiques & jewelry stores
✅ Supermarkets & shopping malls
✅ Cafés, club bars, and airport retail
✅ Brand flagship stores

Quality & Warranty

• Materials: Premium Lotte or Sabic polycarbonate. Custom materials available.

• Warranty: 5-year coverage for slats (free replacement for discoloration or defects).





Packaging & Delivery

• Export-Ready:

• Plywood crates (LCL) or foam/carton (FCL).


Why Choose This Door?

"As clear as glass, as strong as steel"—this door merges 24/7 advertising visibility with bank-grade security

. Minimal maintenance, low lifetime cost, and effortless installation make it the smart choice for discerning businesses.

For customization or technical drawings, contact us to discuss project-specific requirements.
