Transparent Rolling Shutter PC150
ClearVision Polycarbonate Roll-Up Door

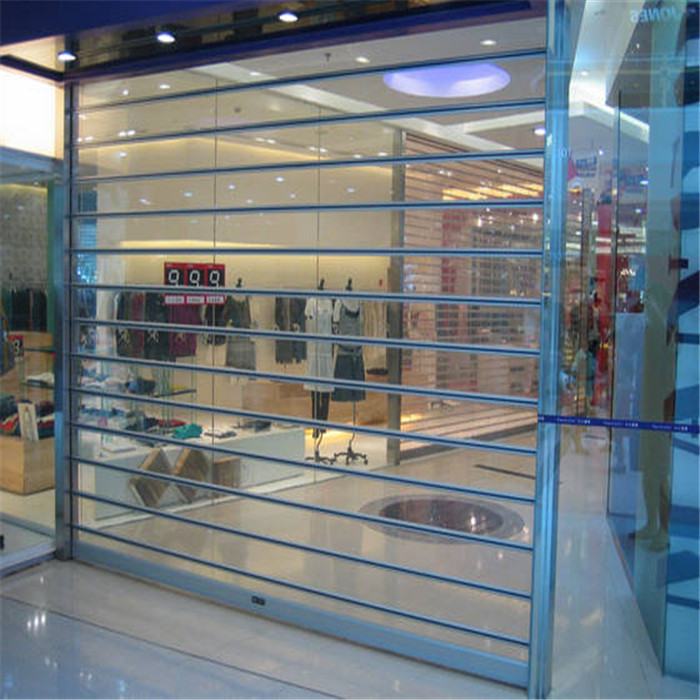

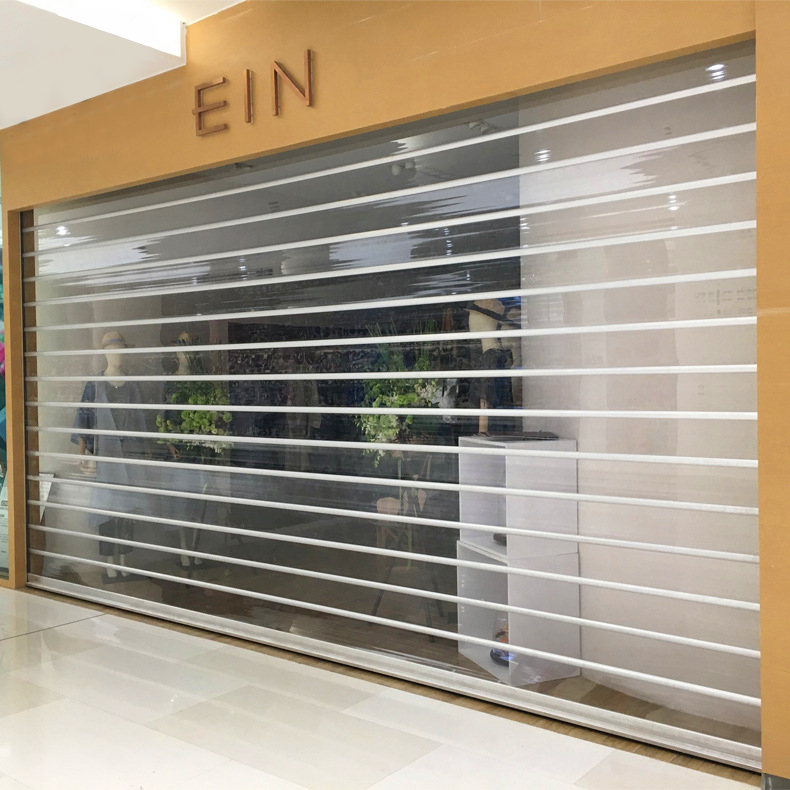

Ideal for commercial storefronts, boutiques, and high-security display zones, the ClearVision Polycarbonate Roll-Up Door seamlessly blends robust security with 24/7 product visibility. Engineered to deter burglaries while showcasing merchandise after hours, it combines easy installation, cost-effectiveness, and minimal maintenance—making it a premier choice for modern retail environments.
Technical Specifications
Rubber Tube: Integrated safety stop mechanism to prevent accidental impact on objects or personnel.
Bottom Bar: Durable aluminum construction; customizable in white, black, or natural finish.
Polycarbonate Slats: 100% UV-stabilized, high-clarity PC material (Samsung Korea or Makrolon Germany).

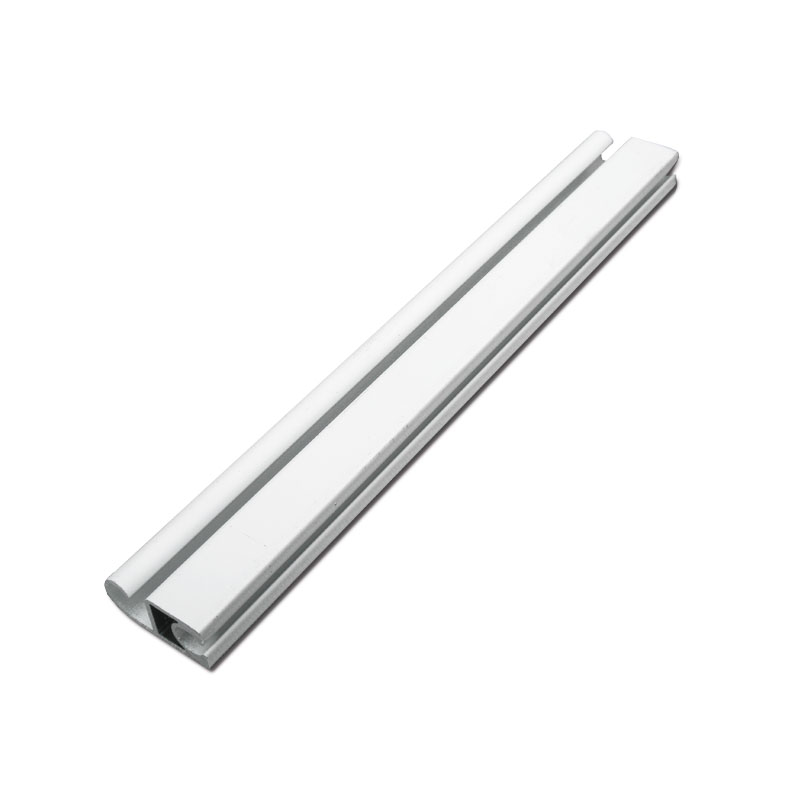

Aluminum Bar: Reinforced connector; color-matched to door aesthetics.
End Caps: White PVC caps for seamless compatibility with aluminum bars.
Guide rail brush: the brush inserted into the guide rail to reduce noise
Top Slat: Galvanized steel base connecting the PC curtain to the drive system.
Steel End Clip: Stabilizes the top slat assembly.
Top Slat: Galvanized steel base connecting the top slat to the shaft
Guide Rail: U-shaped aluminum track with brush seals for silent operation; colors: black/white/natural.
Shaft (Top Axle): Galvanized steel, Ø3"–10" (customizable for load requirements).
bearing: connect the shaft to side plate
left plate: made of galvanized steel, it is used to install the top axle
right plate: made of galvanized steel, it is used to install the top axle and motor
Motor Options:
Seated Motor: 300–2000kg capacity (220V/380V; 50/60Hz).
Tubular Motor: 60–300Nm torque (230V/120V compatibility)
Applications
Perfect for high-traffic and high-value display spaces:
Supermarkets & Shopping Malls
Jewelry Stores & Luxury Boutiques
Café Fronts & Club Bars
Key Features
Crystal Clarity: 80–90% light transmission (adjustable via slat thickness).
Security: 200× stronger impact resistance vs. glass; deters forced entry.
UV Resistance: Blocks 80% of harmful ultraviolet rays.
Thermal Efficiency: 4× better heat insulation than glass.
Soundproofing: Reduces noise by 3–4dB.
All-Weather Durability: Stable performance from -40°C to 120°C (-40°F to 248°F).
Eco-Conscious: ROHS-compliant, 100% recyclable materials.
24/7 Advertising: Display products even when closed.
Fire Safety: Horizontal HB/Vertical V2 flame-retardant certification.
Lightweight: Curtain weight ≈5kg/m² for structural flexibility.
Material Quality & Warranty
Premium Materials: Slats sourced from Lotte and Sabic. Custom material procurement available.
5-Year Warranty: Covers slat integrity, including free replacement for discoloration or defects.
Packaging & Delivery
LCL Shipments: Plywood box protection.
FCL Shipments: Foam-filled cartons for damage-free transit.
Lead Time: 7–15 days post-confirmation
