Product

Full Vision Polycarbonate Roller Door: Secure Transparency for 24/7 Display

Ideal for luxury boutiques, high-traffic retail spaces, and premium commercial venues, the Full Vision Polycarbonate Roller Door merges elite security with crystal-clear visibility. Engineered with reinforced aluminum bars and vandal-resistant polycarbonate slats, it deters intrusions while showcasing products day and night—even when closed

.

Technical Specifications

1. Curtain System

• Material:

• Size: 33mm × 1.5mm (powder-coated in white, black, or natural aluminum)

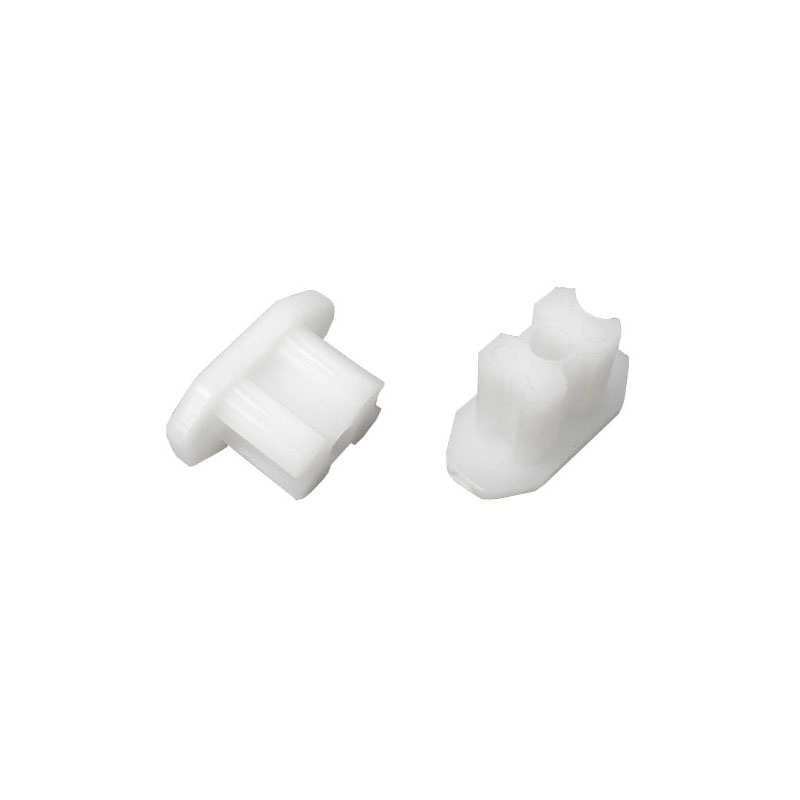

• Security: Plastic end caps prevent slat slippage.

• Size: 100mm × 100mm (customizable to 100mm × 330mm)

• Thickness: 1.2–3.0mm (standard: 2.3–3.0mm for enhanced durability)

• Light Transmission: 80–90% (near-glass clarity)

• UV Blocking: Filters 80% of solar ultraviolet rays.

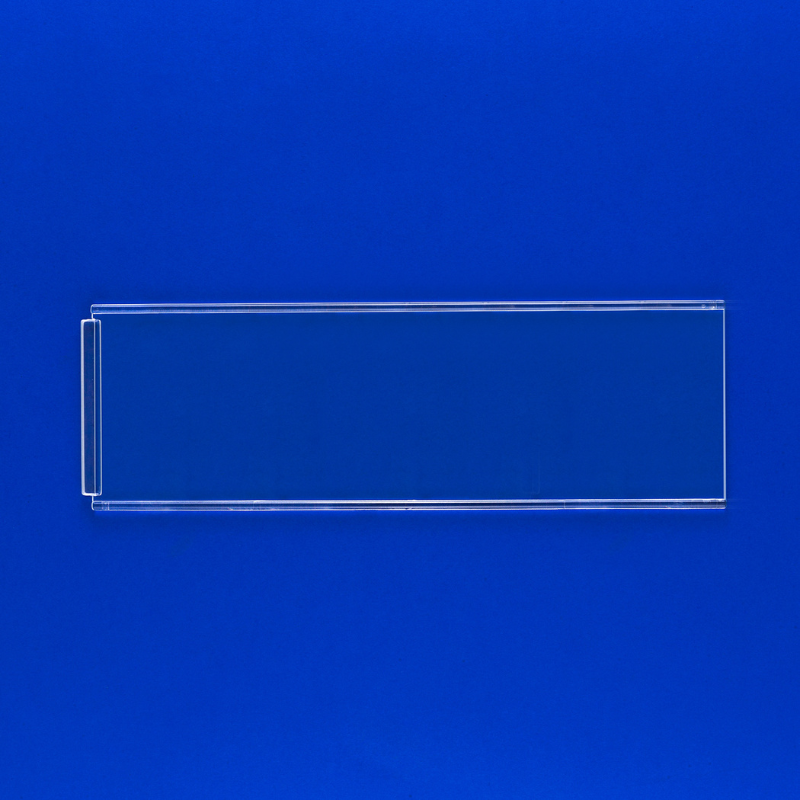

• Polycarbonate Slats:

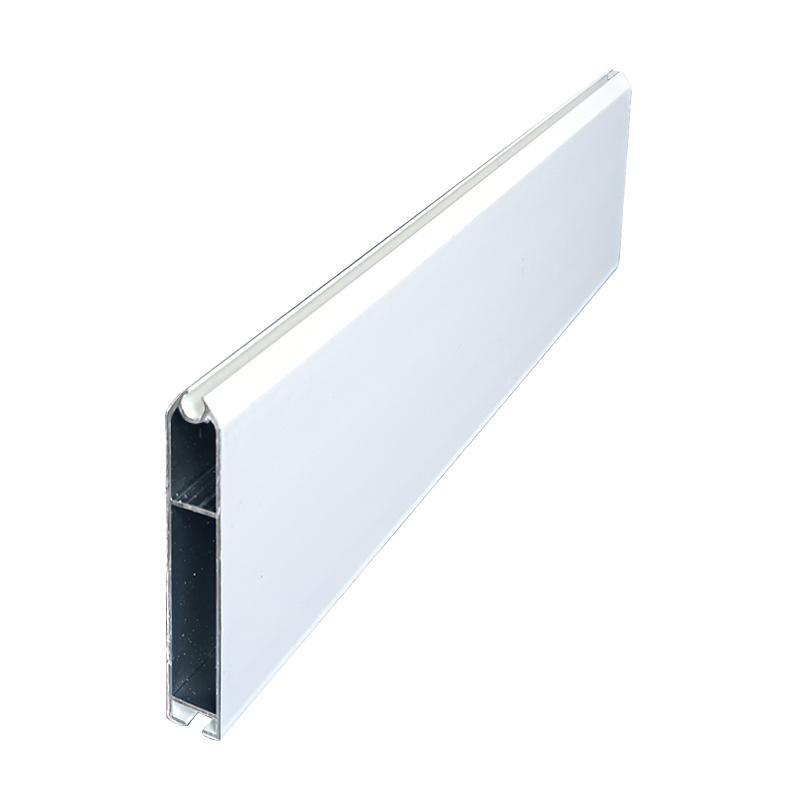

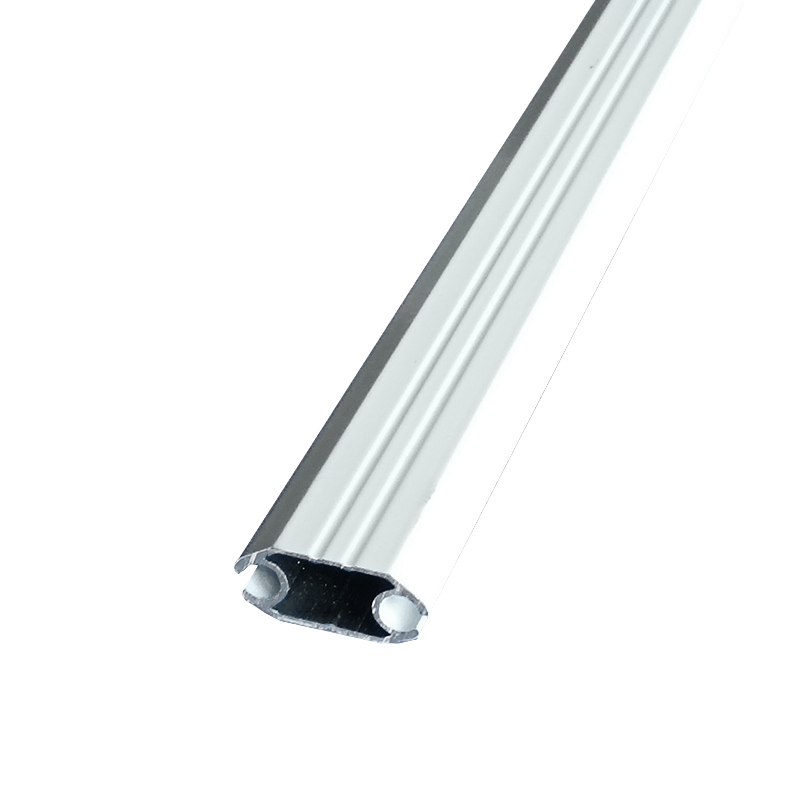

• Aluminum Bars:


2. Structural Components

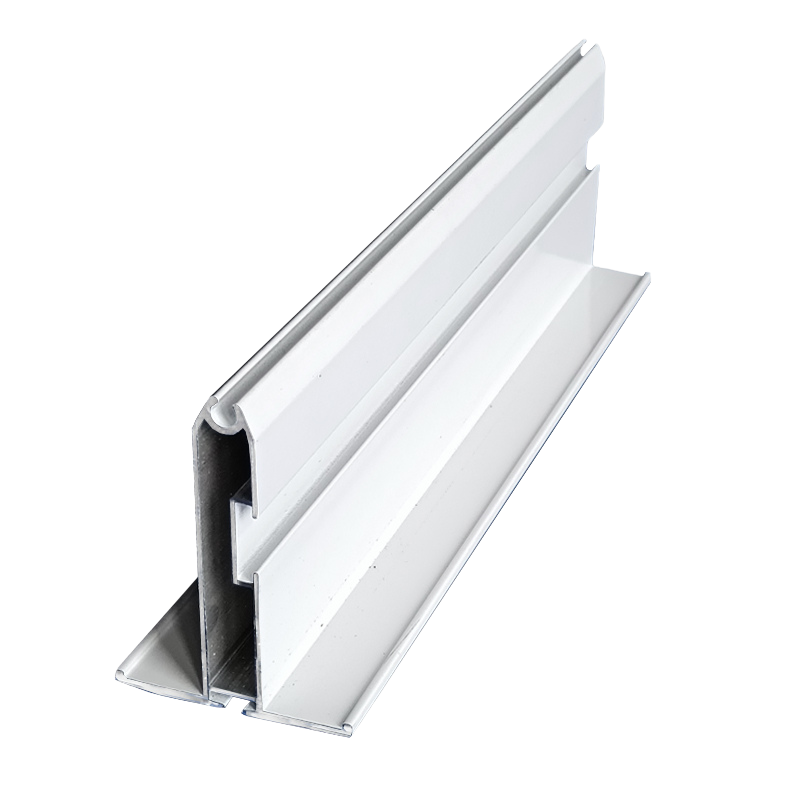

• Bottom Rail:

• Motorized: 100mm × 15mm | Manual: 80mm × 40mm

• Weather Seal: Integrated rubber brush for dust/weather resistance.

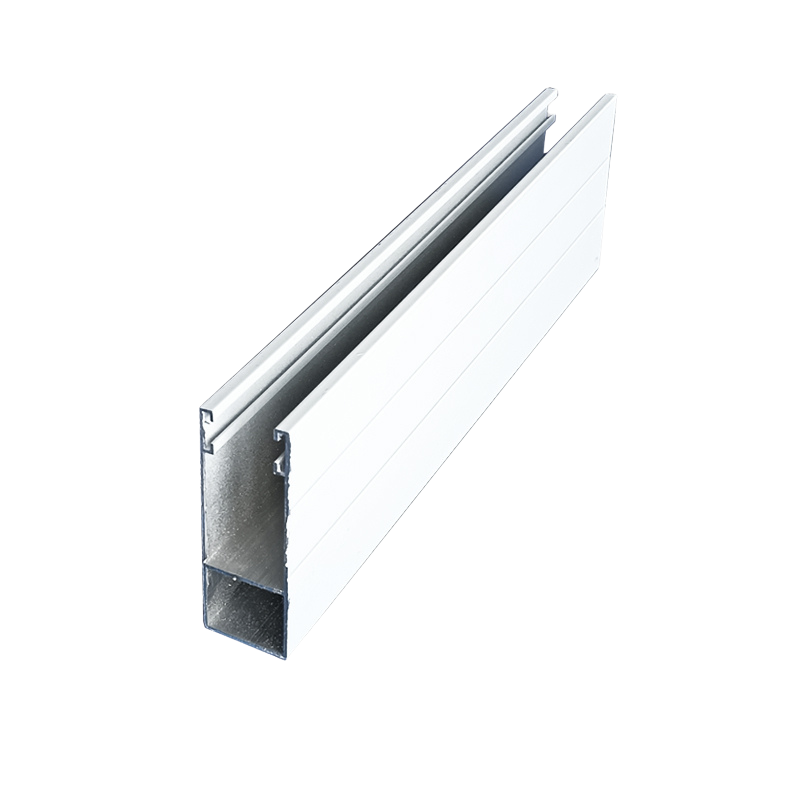

• Guide Rails:

• Size: 80–100mm × 40mm (2.0mm thickness)

• Noise Reduction: Brush strips ensure silent operation (<4dB noise).

• Shaft & Bearings:

• Galvanized steel (diameter: 3"–10"; wall thickness: 1.0–3.0mm).

3. Motorized Operation

• Motor Options:

• Voltage: 220V/50Hz (single-phase), 380V/50Hz (three-phase), or 110V/60Hz.

• Lifting Capacity: 300–2,000KG.

• Control Systems:

• Remote control (2+ included), switch buttons, manual crank, or smartphone integration.

• Safety: Auto-reverses upon collision; manual override during power outages.


Unmatched Features

• Security & Durability:

• 200× stronger impact resistance than glass; withstands forced entry.

• Flame retardant (Class V0—highest fire rating).

• All-Weather Performance:

• Stable from -40°C to 120°C; 20-year outdoor lifespan.

• Energy Efficiency:

• 10× better heat insulation and 3–4dB superior soundproofing vs. glass.

• Eco-Friendly:

• Recyclable polycarbonate (ROHS-compliant).

• Lightweight Design:

• Curtain weight: ~5 kg/m² (reduces structural load).

Applications

Perfect for:
✅ Luxury Retail: Jewelry stores, fashion boutiques (24/7 product visibility)

.
✅ High-Traffic Venues: Airports, shopping malls, banks.
✅ Hospitality: Café terraces, club entrances.

Quality & Warranty

• Materials: Premium Lotte or Makrolon polycarbonate

  .

• Warranty: 5-year coverage for slats; free replacement for discoloration

  .

Packaging & Delivery

• Export-ready: Plywood crates (LCL) or foam/carton (FCL)





Why Choose This Door?

“As clear as glass, as strong as steel”

—this door combines 24/7 advertising impact with bank-grade security. Minimal maintenance, 30-year indoor durability, and effortless installation make it the ultimate investment for discerning businesses.

For customization or technical drawings, contact us to discuss project-specific requirements.

Sources: Verified technical data from ISO 9001-certified manufacturers

. Flame retardancy (V0) and UV resistance tested by independent labs.
