Shop Security Clear Polycarbonate Impact-Resistant Roller Shutter Doors PC400
ITEM DESCRIPTION:
A clear view transparent PC polycarbonate roller shutter is widely used in commercial shops and brand stores,
this type of roller shutter can protect the store from burglary and display the shop good 24hours a day.
it is also accepted by its advantages such as easy installation, cheap price and low maintenance cost
Specifications (18 Components)
Safety Rubber Tube – integrated stop device prevents injury or damage.
Bottom Bar – corrosion-proof Al or SS, white or raw metal.

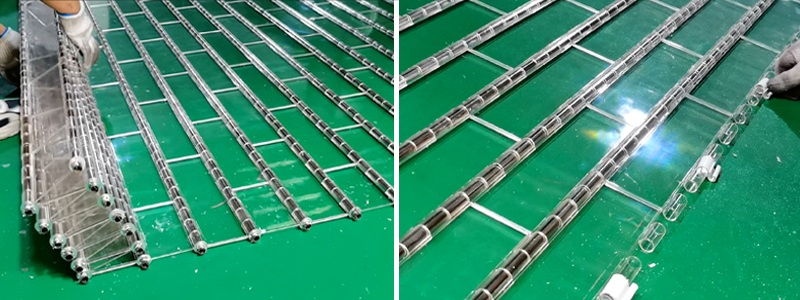

Polycarbonate Slat – 100 % PC, transparency 80-90 % (2-5 mm thickness).
Stainless-Steel Pipe – 201/304, Ø 9.5 / 12.8 / 16 mm.
End Caps – black plastic/rubber, match pipe Ø.
Top Adapter Hooks – Al/PC, 3-4 pcs/m.
Upper Curtain Attachment Slat – galvanized steel, connects PC curtain.
Steel End Clip – stabilizes attachment slat.
Axle Connection Slat – galvanized steel, links curtain to shaft.
Guide Rails – U-shape, Al or 201/304 SS.
Brush Strips – noise reduction & weather seal.
Drive Shaft – galvanized steel, Ø 3"-10" (76-254 mm).
Left Bearing Plate – galvanized steel shaft support.
Right Bearing Plate & Motor Mount – galvanized steel.
Motors
Seated: 300-2 000 kg (AC 220/380 V)
Tubular: 60-300 N·m (AC 230 V)
Wall Switch
RF Remote Control
Manual Lifting Chain – emergency backup.

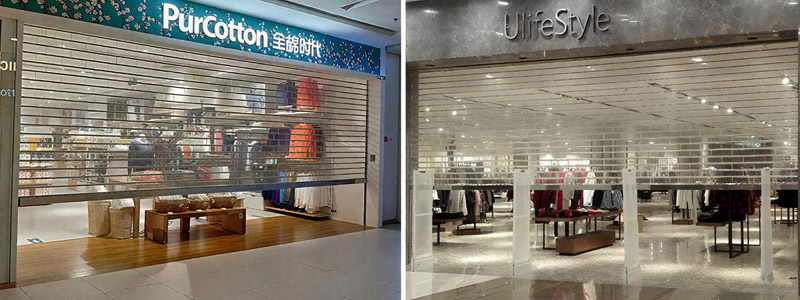

Applications
Commercial-center shop fronts
Retail chain stores
Boutiques & showrooms
Jewelry stores & banks
Mall entrances
Convenience stores & pharmacies
Product Features
| Feature | Value / Benefit |
|---|---|
| Transparency | 80-90 % (slat thickness 2-5 mm) |
| UV Protection | Blocks 80 % UV, prevents fading |
| Impact Resistance | 200× stronger than glass, ANSI Z97.1 |
| Thermal Insulation | U-value 0.80 ± 0.05 W/m²K, 30 % HVAC savings |
| Fire Rating | UL 94 HB horizontal / V-2 vertical |
| Noise Reduction | 3-4 dB (STC 28) |
| Weight | 5.0 kg/m² (±0.2 kg) |
| Operating Temp | -40 °C to +120 °C |
Material Quality
Primary resins: Lotte (KR), Covestro Sabic (SA)
UV-stabilized co-extruded surface layer
Custom resins on request
Warranty & Shipping
Warranty: 5 years on PC slats
Packing: LCL:foam packing plywood box, FCL foam packing
