Polycarbonate Rolling Shutter PC-315
Specifications
Safety Rubber Tube – integrated stop device prevents injury or damage.
Bottom Bar – corrosion-proof Al or SS, white or raw metal.

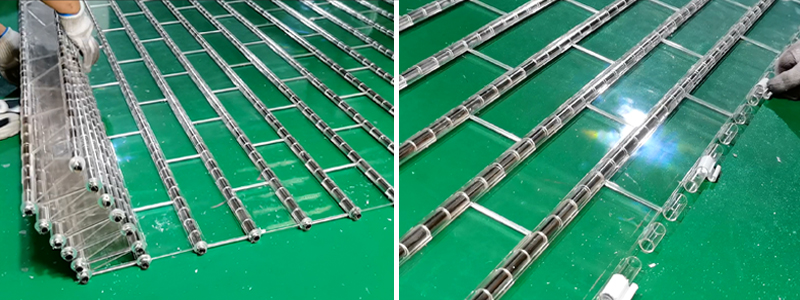

Polycarbonate Slat – 100 % PC, transparency 80-90 % (2-5 mm thickness).
Stainless-Steel Pipe – 201/304, Ø 9.5 / 12.8 / 16 mm.
End Caps – black plastic/rubber, match pipe Ø.
Top Adapter Hooks – Al/PC, 3-4 pcs/m.
Upper Curtain Attachment Slat – galvanized steel, connects PC curtain.
Steel End Clip – stabilizes attachment slat.
Axle Connection Slat – galvanized steel, links curtain to shaft.
Guide Rails – U-shape, Al or 201/304 SS.
Brush Strips – noise reduction & weather seal.
Drive Shaft – galvanized steel, Ø 3"-10" (76-254 mm).
Left Bearing Plate – galvanized steel shaft support.
Right Bearing Plate & Motor Mount – galvanized steel.
Motors
Seated: 300-2 000 kg (AC 220/380 V)
Tubular: 60-300 N·m (AC 230 V)
Wall Switch
RF Remote Control
Manual Lifting Chain – emergency backup.

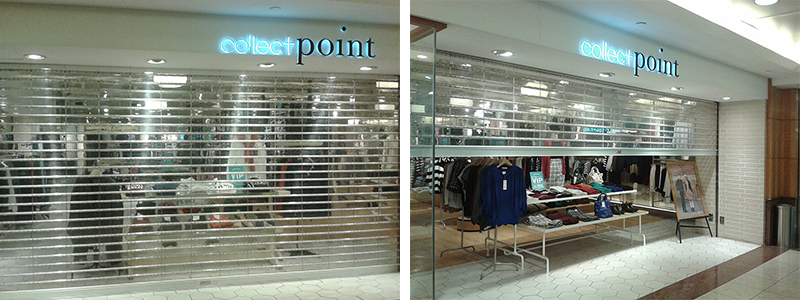

Applications
Commercial-center shop fronts
Retail chain stores
Boutiques & showrooms
Jewelry stores & banks
Mall entrances
Convenience stores & pharmacies
Product Features
| Feature | Value / Benefit |
|---|---|
| Transparency | 80-90 % (slat thickness 2-5 mm) |
| UV Protection | Blocks 80 % UV, prevents fading |
| Impact Resistance | 200× stronger than glass, ANSI Z97.1 |
| Thermal Insulation | U-value 0.80 ± 0.05 W/m²K, 30 % HVAC savings |
| Fire Rating | UL 94 HB horizontal / V-2 vertical |
| Noise Reduction | 3-4 dB (STC 28) |
| Weight | 5.0 kg/m² (±0.2 kg) |
| Operating Temp | -40 °C to +120 °C |
Material Quality
Primary resins: Lotte (KR), Covestro Sabic (SA)
UV-stabilized co-extruded surface layer
Custom resins on request
Warranty & Shipping
Warranty: 5 years on PC slats
Packing: LCL:foam packing plywood box, FCL foam packing
