Commercial Security Aluminum Perforated Folding Door
Aluminum Perforated Folding Door System

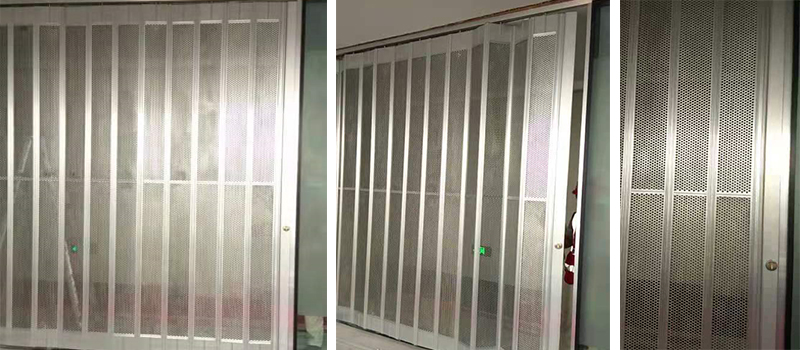

Ideal for commercial centers, shopping malls, and retail spaces, this folding grille door combines robust security with optimized airflow. Crafted from custom-perforated aluminum panels, it ensures ventilation without compromising safety. The door can be tailored with curved or straight rails to fit any opening shape, offering flexibility in design and functionality.
Applications
Perfect for a wide range of commercial environments:
Supermarkets & shopping malls
Jewelry stores & luxury boutiques
Coffee shops & club bars
Brand chain stores & retail outlets
Panel Options

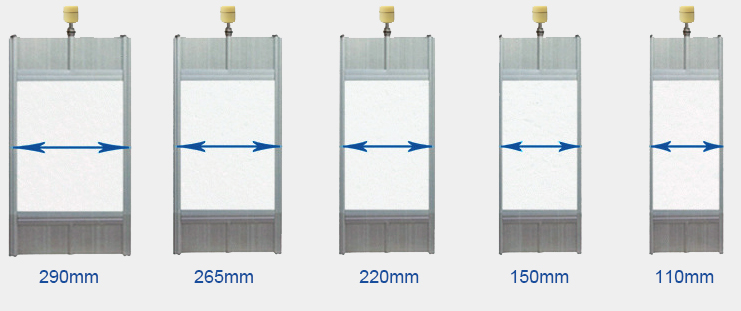

Single Panel Width: 110mm, 150mm, 220mm, 265mm, 290mm

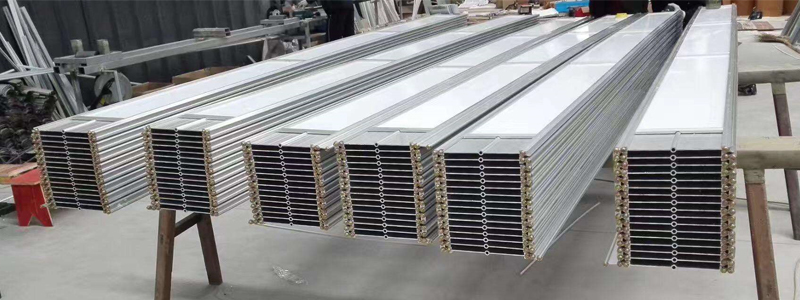

Perforated Panel: 1~2mm perforated aluminum panel integrated with high-strength aluminum frames for security and ventilation.
Hole size: customizable
Operation: Manual or motorized systems for seamless control.
Track System
35mm×45mm Aluminum Track: Designed for straight openings; can be pre-formed for curved applications using bending equipment.
35mm×55mm Aluminum Track: Engineered for effortless curved installations while remaining compatible with straight openings.
Maximum Dimensions
Max Width: Up to 35 meters
Max Height:
Manual operation: 4.5 meters
Motorized operation: 6.0 meters
Security Features
Locking Mechanism: Each door includes a dual-sided lock set with two keys for accessible security.
Ground Bolts: Provided with dust covers at 1-meter intervals for enhanced stability.
Aesthetic Customization
Finish Options: Powder-coated or anodized surfaces.
Standard Colors: Natural aluminum, white, black.
Custom Colors: Available upon request (provide color samples for precise matching).
Stacking Pocket
Pocket size calculates to approximately 8% of the total door width. Specific dimensions are finalized based on project data.
Motor Specifications
Voltage/Frequency: Single-phase 220V/50Hz, three-phase 380V/50Hz, or 110V/60Hz.
Remote Controls: Includes 2+ remote units.
Lifting Capacity: Ranges from 300KG to 2000KG.
Optional Features: Backup battery, alarm system, emergency stop device, smartphone connectivity.
Warranty & Shipping
Warranty: 5-year guarantee covering damage during transport.
Packaging:
Plywood boxes for LCL shipments.
Foam and carton packaging for FCL shipments.
Why Choose This Product?
Security & Visibility: Perforated design deters unauthorized access while maintaining visibility and airflow.
Customizable: Adapts to curved or straight openings with tailored tracks and finishes.
Durable Construction: Aluminum panels offer corrosion resistance and longevity.
Compliance Ready: Suitable for high-traffic commercial spaces with motorized or manual operation options.
For quotes or customizations (e.g., color samples, motor specs), contact us with detailed requirements. We ensure timely delivery and professional support throughout your project.
Note: Specifications subject to technical validation based on final design and installation conditions.
