ClearVision Polycarbonate Roll-Up Door

Ideal for commercial storefronts, boutiques, and high-security display zones, the ClearVision Polycarbonate Roll-Up Door seamlessly blends robust security with 24/7 product visibility. Engineered to deter burglaries while showcasing merchandise after hours, it combines easy installation, cost-effectiveness, and minimal maintenance—making it a premier choice for modern retail environments.

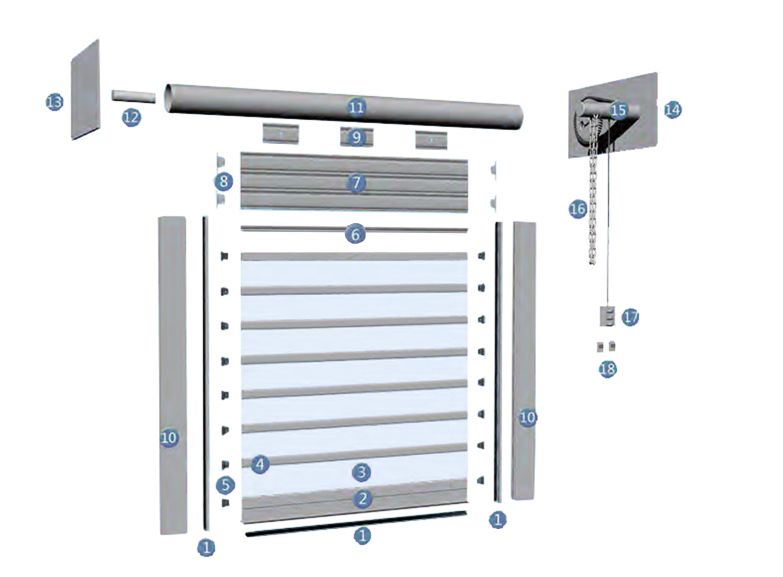

Technical Specifications

1. Rubber Tube: Integrated safety stop mechanism to prevent accidental impact on objects or personnel.

2. Bottom Bar: Durable aluminum construction; customizable in white, black, or natural finish.

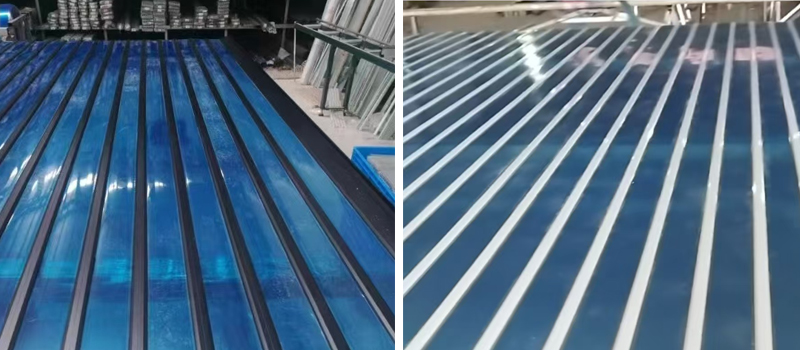

3. Polycarbonate Slats: 100% UV-stabilized, high-clarity PC material (Samsung Korea or Makrolon Germany).

4. Aluminum Bar: Reinforced connector; color-matched to door aesthetics.

5. End Caps: White PVC caps for seamless compatibility with aluminum bars.

6. Guide rail brush: the brush inserted into the guide rail to reduce noise

7. Top Slat: Galvanized steel base connecting the PC curtain to the drive system.

8. Steel End Clip: Stabilizes the top slat assembly.


9. Top Slat: Galvanized steel base connecting the top slat to the shaft


10. Guide Rail: U-shaped aluminum track with brush seals for silent operation; colors: black/white/natural.

11. Shaft (Top Axle): Galvanized steel, Ø3"–10" (customizable for load requirements).

12. bearing: connect the shaft to side plate


13. left plate: made of galvanized steel, it is used to install the top axle


14. right plate: made of galvanized steel, it is used to install the top axle and motor


15. Motor Options:

      ○ Seated Motor: 300–2000kg capacity (220V/380V; 50/60Hz).

      ○ Tubular Motor: 60–300Nm torque (230V/120V compatibility)


Applications

Perfect for high-traffic and high-value display spaces:

○ Supermarkets & Shopping Malls

○ Jewelry Stores & Luxury Boutiques

○ Café Fronts & Club Bars

Key Features

○ Crystal Clarity: 80–90% light transmission (adjustable via slat thickness).

○ Security: 200× stronger impact resistance vs. glass; deters forced entry.

○ UV Resistance: Blocks 80% of harmful ultraviolet rays.

○ Thermal Efficiency: 4× better heat insulation than glass.

○ Soundproofing: Reduces noise by 3–4dB.

○ All-Weather Durability: Stable performance from -40°C to 120°C (-40°F to 248°F).

○ Eco-Conscious: ROHS-compliant, 100% recyclable materials.

○ 24/7 Advertising: Display products even when closed.

○ Fire Safety: Horizontal HB/Vertical V2 flame-retardant certification.

○ Lightweight: Curtain weight ≈5kg/m² for structural flexibility.

Material Quality & Warranty

○ Premium Materials: Slats sourced from Lotte and Sabic. Custom material procurement available.

○ 5-Year Warranty: Covers slat integrity, including free replacement for discoloration or defects.

Packaging & Delivery

○ LCL Shipments: Plywood box protection.

○ FCL Shipments: Foam-filled cartons for damage-free transit.

○ Lead Time: 7–15 days post-confirmation
