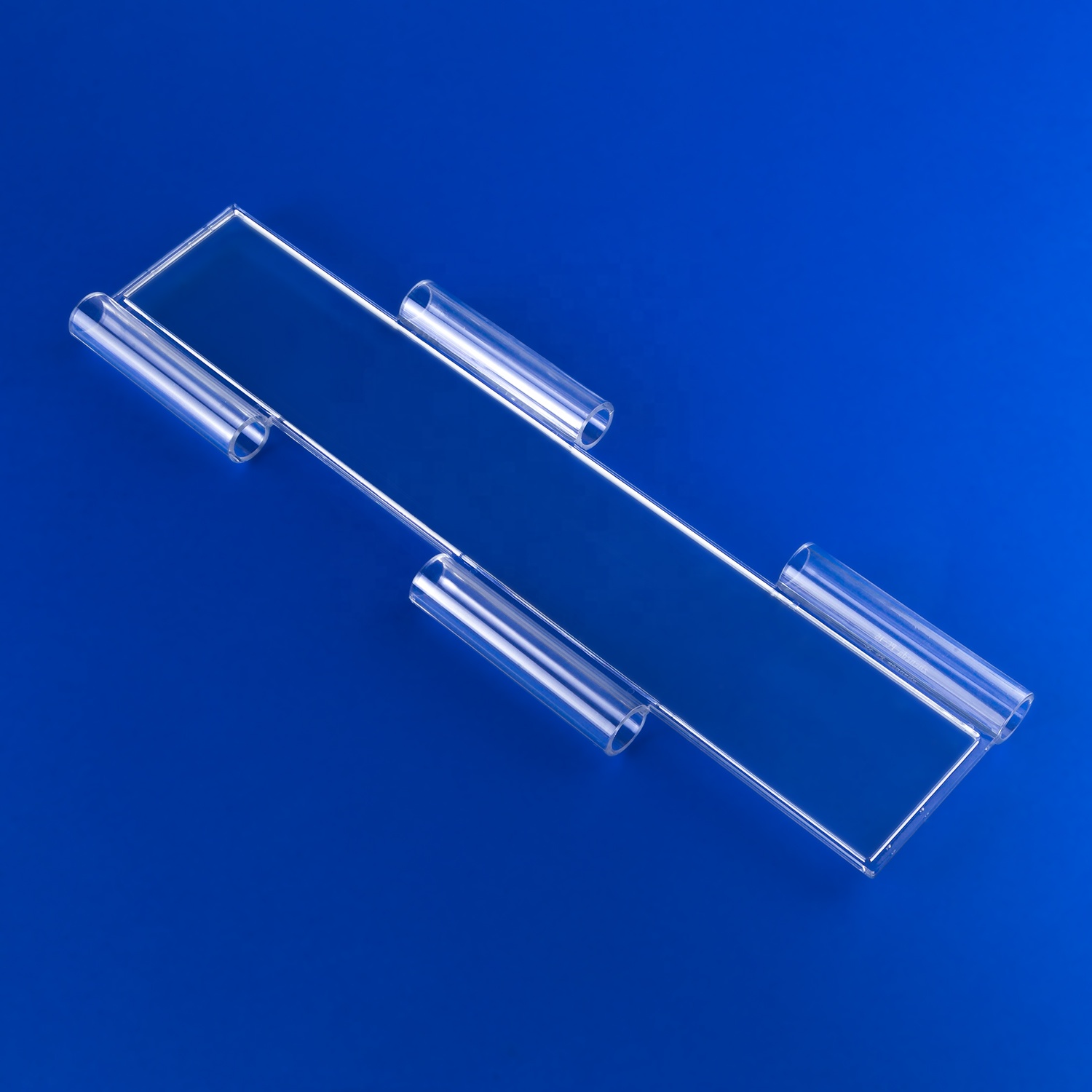

Transparnet Polycarbonate Roller Shutter Slats PC-400
Product Overview

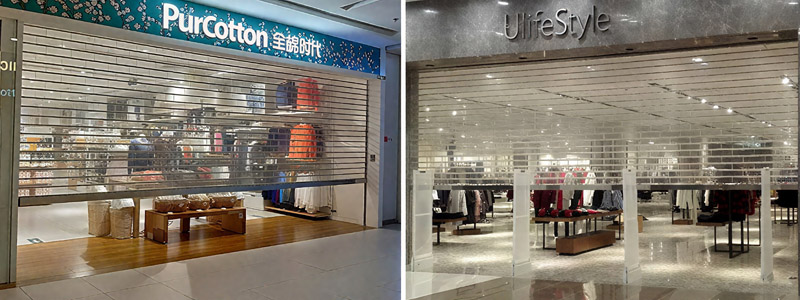

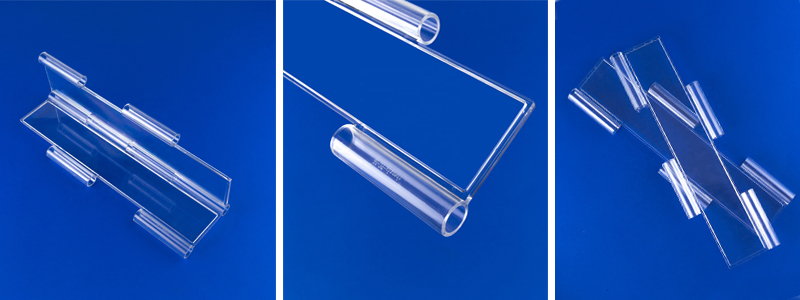

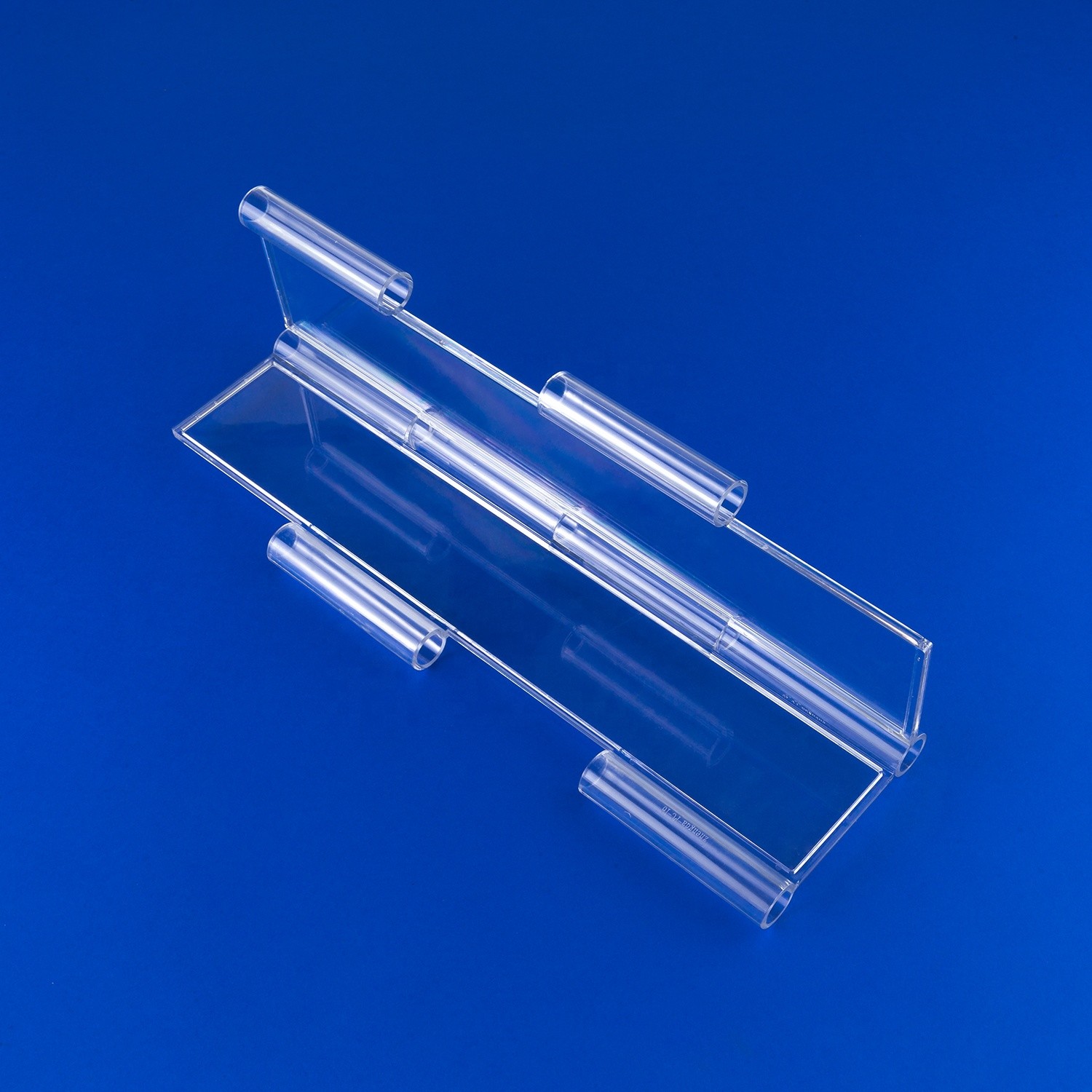

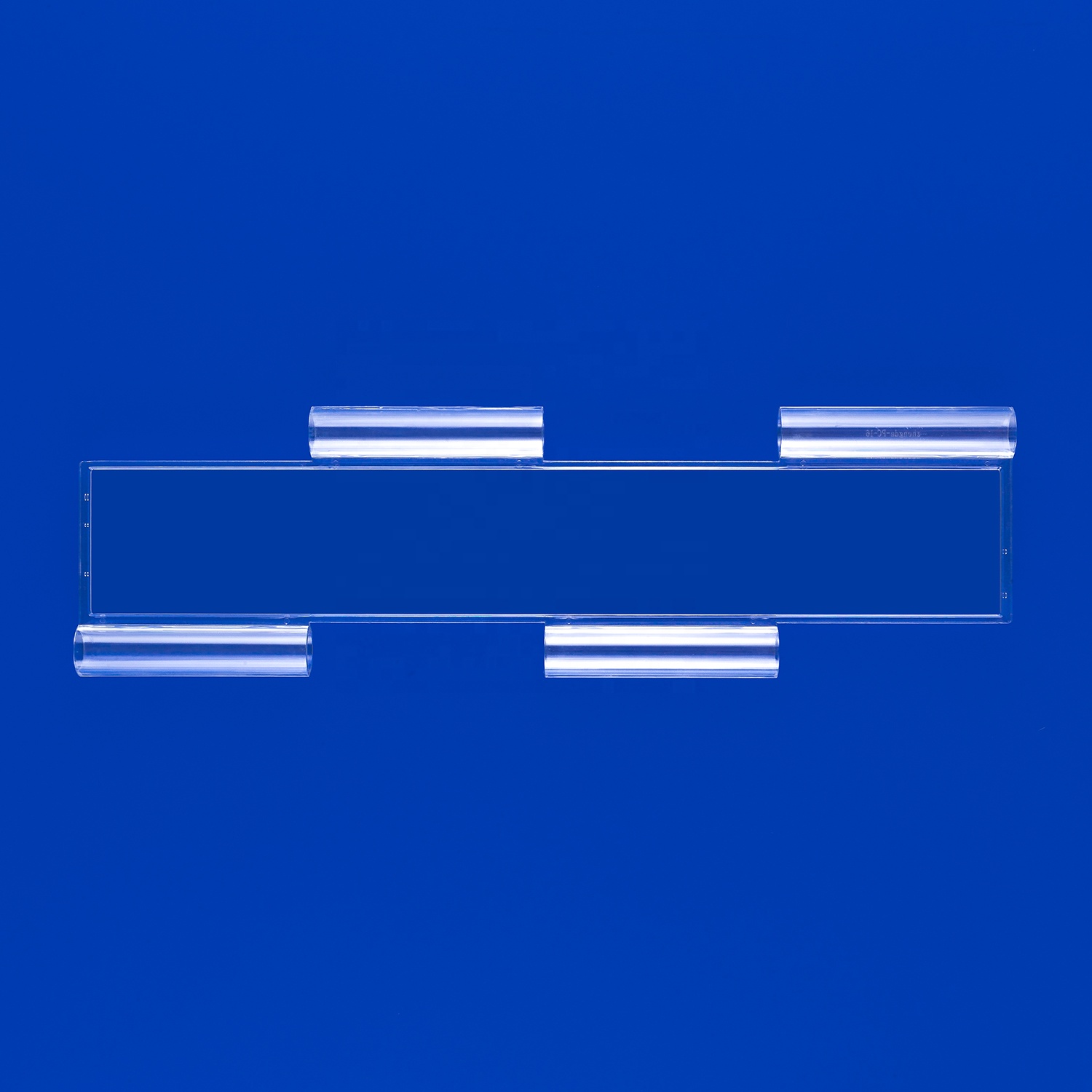

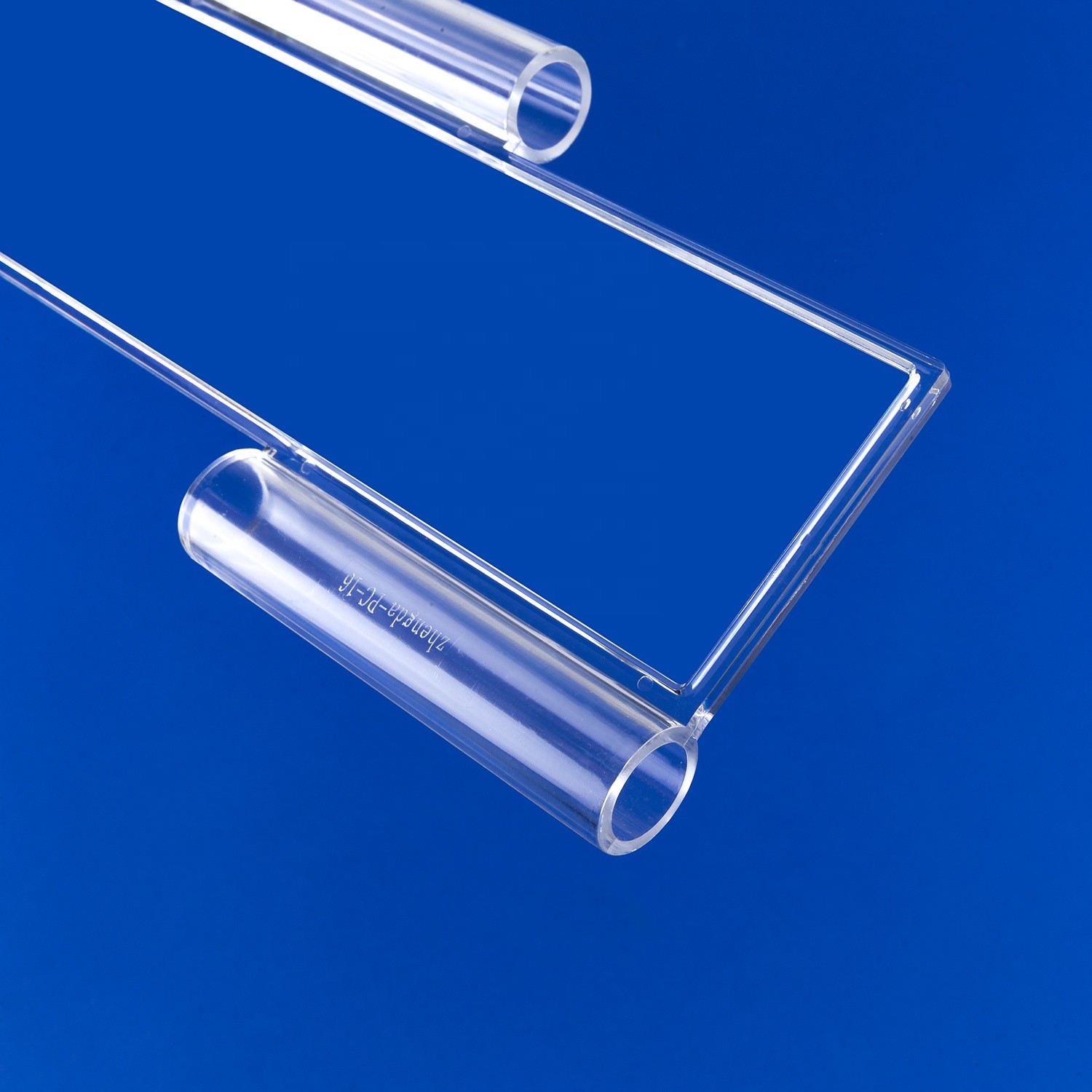

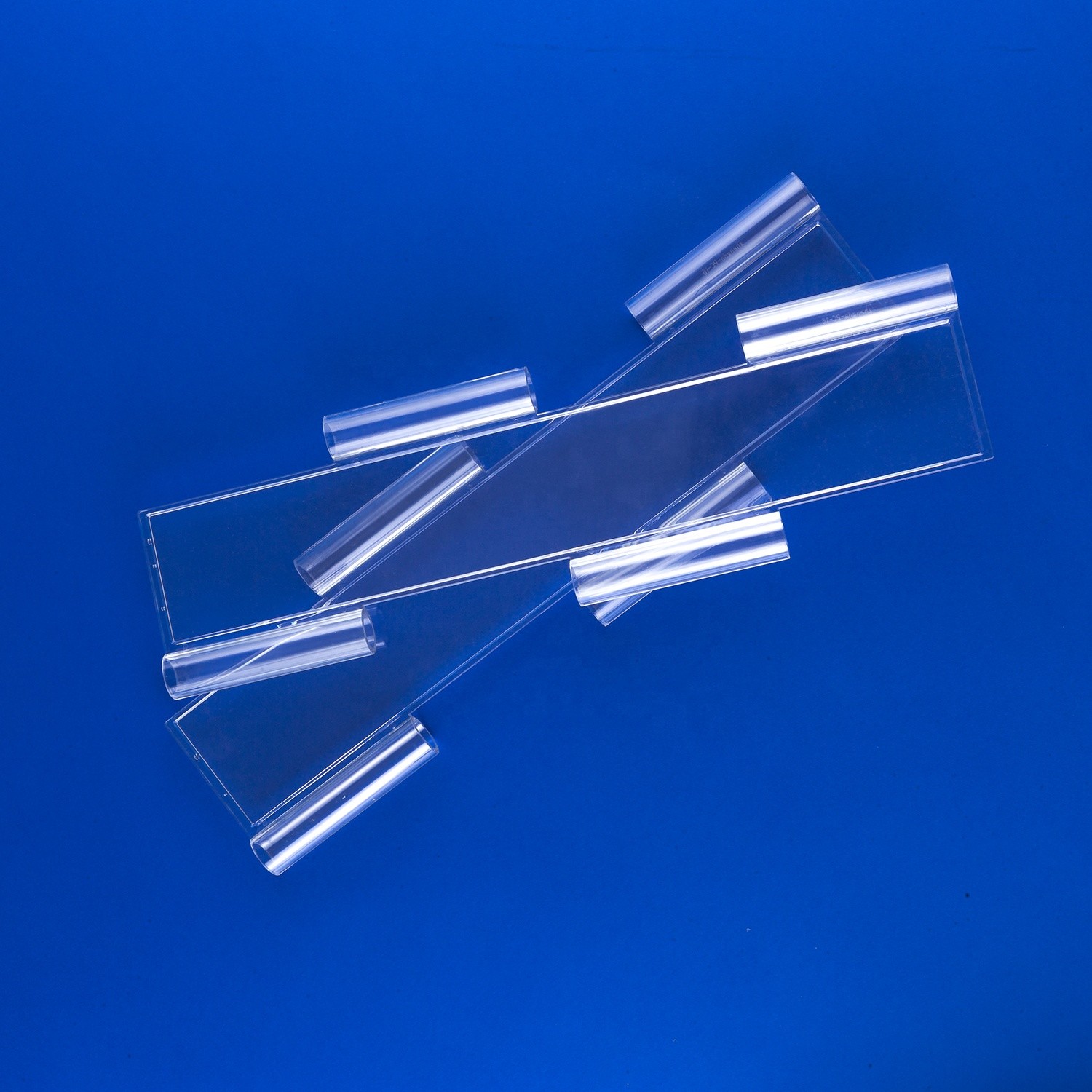

Crafted from 100% premium polycarbonate raw material, our Transparent Roller Shutter Slat is the core component of a high-security, high-visibility Clear Crystal rolling shutter. Dubbed "as clear as glass, as strong as steel," this innovative slat is engineered to provide exceptional protection without sacrificing aesthetics
. A complete curtain is assembled by integrating these polycarbonate slats with reinforced steel or aluminum pipes, creating a robust barrier ideal for modern commercial applications.

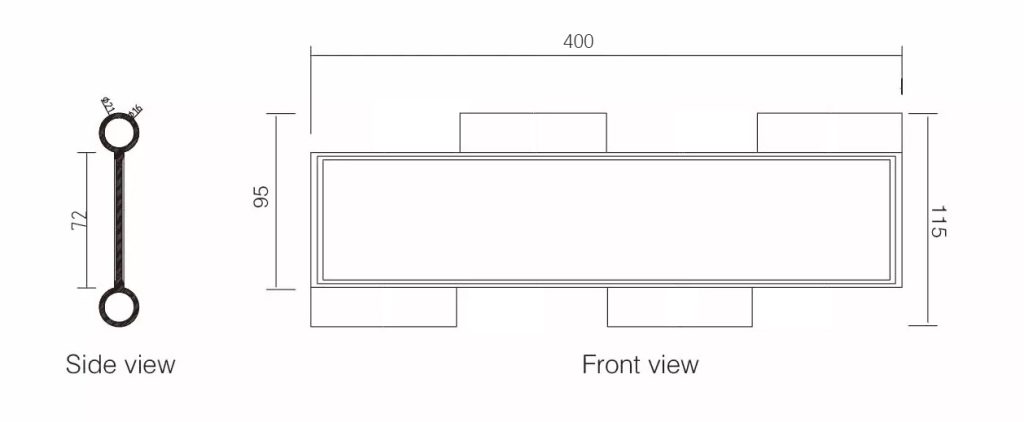

Technical Specifications
| Attribute | Specification |
|---|---|
| Material | 100% Virgin Polycarbonate (Samsung, Makrolon grades available) |
| Transparency | 80% - 90% (varies with slat thickness) |
| UV Resistance | Up to 80% protection |
| Impact Resistance | High, significantly higher than standard glass |
| Fire Rating | Horizontal HB / Vertical V2 (Self-extinguishing) |
| Operating Temperature | -40°C to +120°C |
| Weight | ~5 kg per square meter |
| Sound Insulation | 3-4 dB better than glass |
| Warranty | 5 years on polycarbonate slats |
Key Features & Benefits
Uncompromised Visibility & Display: Offers between 80% to 90% light transparency, acting as a 24-hour display window for your merchandise. This allows for continuous advertising and product visibility even when your establishment is closed.
Superior Security & Durability: Provides impact resistance far superior to glass, forming a formidable barrier against break-in attempts and vandalism. Its robust design ensures safety and security for your premises
Enhanced Environmental Protection:
UV Resistance: Blocks up to 80% of the sun's harmful ultraviolet rays, protecting interior furnishings, goods, and decor from fading and aging.
Thermal Insulation: Excellent heat rejection capability helps maintain indoor temperature, contributing to significant energy savings.
Weather & Fire Resistance: Provides effective resistance against weather elements
and is made from fire retardant, self-extinguishing material (HB/V2 rating).
Operational Excellence: Features a light weight of approximately 5 kg/sqm for reduced operational strain on the motor system. It is deformation-resistant, performing reliably in a vast temperature range from -40°C to 120°C.
Eco-Conscious Construction: The polycarbonate material is 100% recyclable and complies with RoHS environmental standards, supporting sustainable building practices.
Applications
Ideal for a wide range of commercial and public spaces where security and transparency are paramount:
Retail Stores, Fashion Boutiques, & Jewelry Shops
Shopping Malls, Showrooms, & Bank Fronts
Restaurants, Club Bars, & Airport Retail
Public Buildings & Hospitality Industry Entrances
Quality & Production Assurance

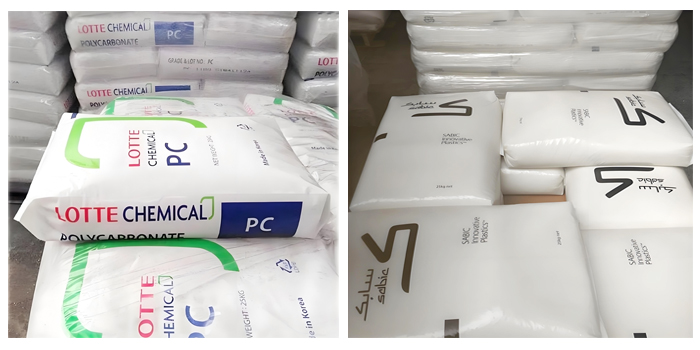

Premium Materials: We utilize top-tier raw materials from trusted suppliers like Lotte and Sabic to ensure superior clarity, strength, and long-term performance against yellowing.
High-Capacity Manufacturing: Our efficient injection molding process allows for a significant output of 5,000 pieces per day, per machine, ensuring we can meet large and urgent order requirements.
Customization: We can source customer-specified materials upon request to meet unique project needs.
Warranty & Support
We stand behind our product with a robust 5-year warranty covering manufacturing defects, including imperfections or discoloration. Defective slats will be replaced under the terms of the warranty.
Packaging & Shipment
Packaging: Units are securely packed in carton boxes or on pallets for optimal protection during transit.
Delivery: We prioritize efficient logistics and can expedite production to accelerate shipment schedules for urgent projects.
