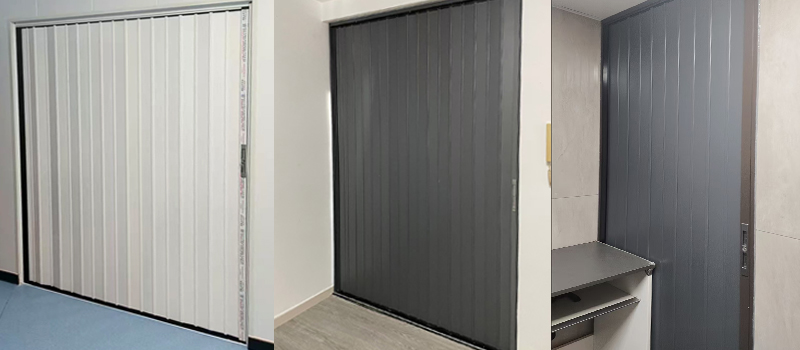

Solid Aluminum Folding Partition Door
Product Name: Solid Aluminum Accordion Folding Door
Model Series: A40 / A60 / A80
Technical Specifications:
Model No. | Panel Thickness | Panel Style | Material | Max. Size (W×H) | Weight per m² |
---|---|---|---|---|---|
A40 | 40mm | W-type | Aluminum + PC | 6m × 4m | 6 kg |
A60 | 60mm | W-type | Aluminum + PC | 6m × 4m | 5.5 kg |
A80 | 80mm | Flat-type | Aluminum + PC | 6m × 4m | 5 kg |
Core Innovations: High grade Protection & Smooth sliding experience
Solid panel Design: Strong protection and high privacy
new railing system: improved top and bottom railing system ensure smooth open and close
5-Year Warranty: Constructed with corrosion-resistant 6063-T5 aluminum alloy frame finished with electrostatic spray coating. Available in black, grey, white, and coffee.
Safety-First Engineering
3 cm Anti-Theft Hooks: Dual key-locked hooks prevent forced entry and enhance security.

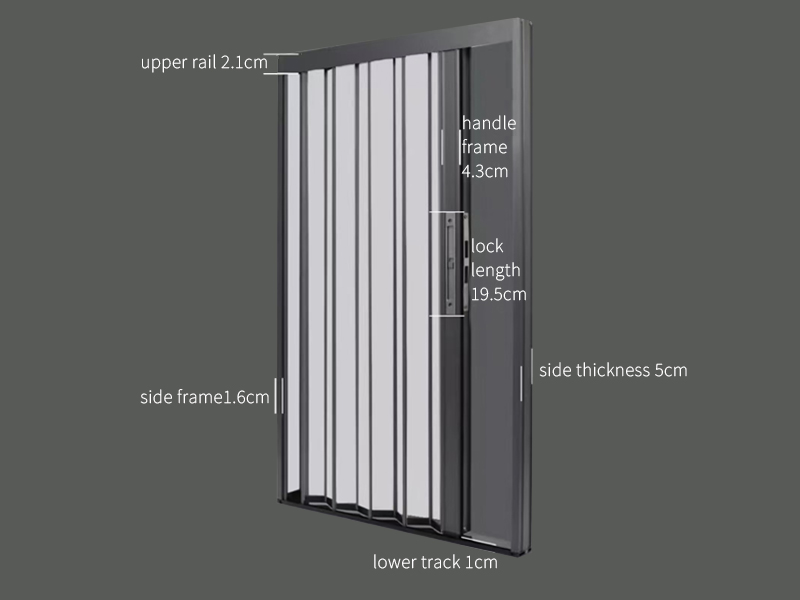

1 cm Ultra-Low Track: Features a double-layer reinforced base capable of withstanding over 200 kg pressure. Suitable for wheelchairs, pets, and strollers.
Intelligent Functionality
Magnetic Seal System: Self-closing magnetic strips ensure wind-resistant automatic shut-off.
Noise-Free Operation: Equipped with copper-bearing rollers for smooth, single-finger operation—tested over 50,000 cycles.
Sace Optimization & Versatility
Pleated Design: Expands up to 8 cm panel, folds to just 25% of door width when retracted.
Multi-Environment Use: Ideal for kitchens (grease and fume blocking), bedrooms (mosquito-free comfort), and balconies (privacy).
Outperforms Traditional Screens:
Feature | Standard Screens | Jin Kaidun Model A40 |
---|---|---|
Track Design | Single-layer rail | Double-reinforced base |
Closing Mechanism | Manual | Auto-sealing magnetic system |
panel thickness | Basic | 1.0mm |
Aesthetic | Visible seams | Sleek pleated invisibility |
Package Includes:
1× Foldable screen door
1× Hardware kit (lock & key)
DIY installation tools
Note:
Easy DIY installation with ±1 cm sizing tolerance.
Made from certified non-toxic materials with a 5-year durability guarantee.
